Rail Roof Access & Edge Protection Platform

Height-Adjustable Roof Access for Rail Maintenance Equipment

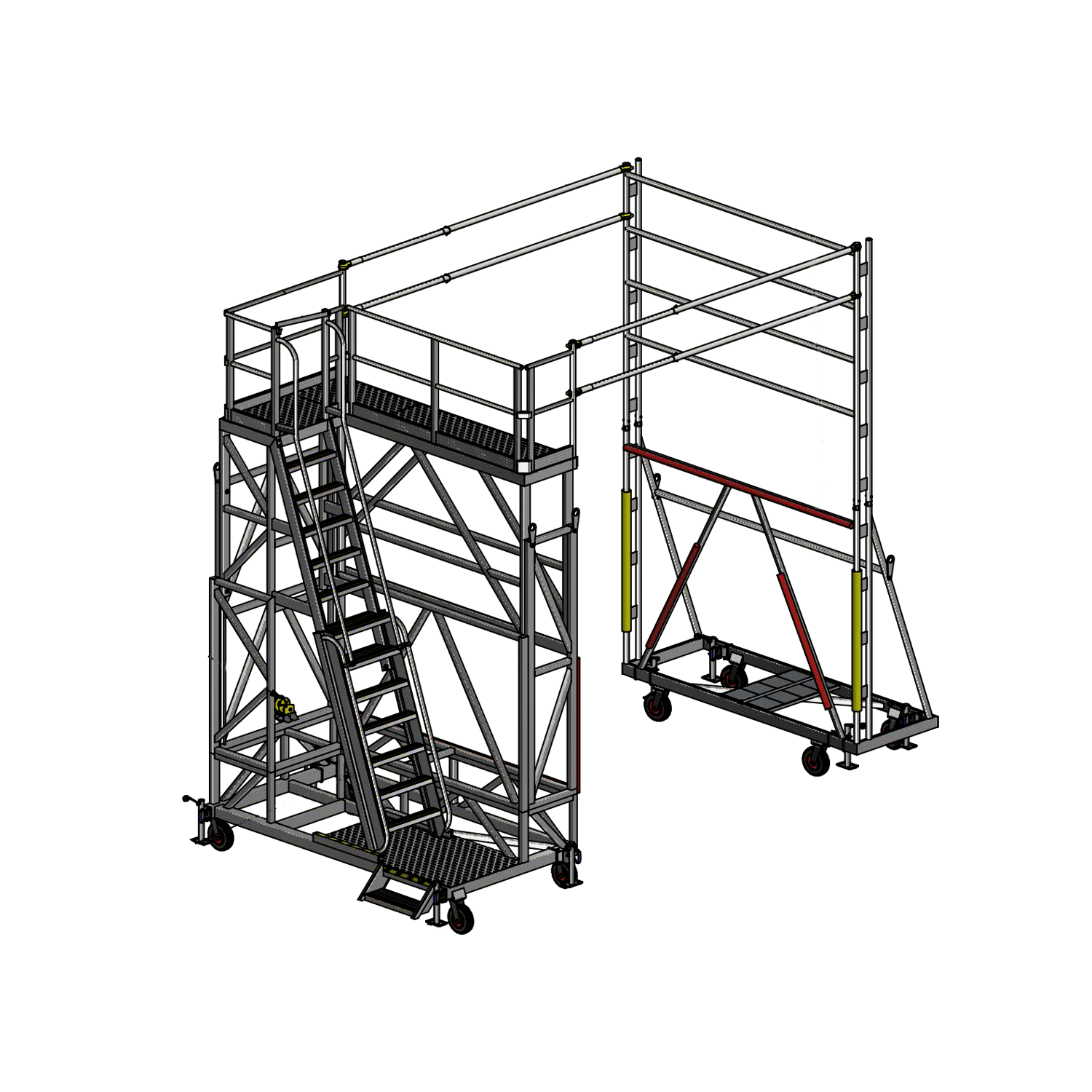

The SafeSmart Rail Roof Access & Edge Protection Platform is a custom mobile platform designed to provide elevated access around rail vehicles and track-maintenance machinery. It combines height-adjustable access platforms with a telescopic guardrail system that connects across the equipment roof, creating a dedicated guarded work area for rooftop maintenance tasks.

The platform adjusts from 8 ft. 8 in. to 13 ft. high to suit varying rail-equipment profiles and service elevations. Telescopic guardrails and a connecting guardrail frame span the roof area, while handrails, midrails, and toe boards provide perimeter protection around the platform work zones.

Raised and swaged decking, wind-down jacks, foam-filled tires, foam buffers, and lifting points support use around active rail-maintenance facilities. The system is particularly suited to roof-mounted HVAC work, roof-section installation, and inspection of elevated rail-equipment components.

Key Features

• Height-adjustable rail roof access platform
• Telescopic guardrails that connect across the equipment roof
• Guardrail frame creates a continuous edge-protected roof work area
• Platform height adjustment from 8 ft. 8 in. to 13 ft.
• Raised and swaged deck surface
• 70-degree stair access, with 45-degree access available as an option
• Handrails, midrails, and toe boards on all sides
• Large foam-filled tires for movement across rail tracks and hard surfaces
• Wind-down jacks for leveling and positioning
• Foam buffers at machinery contact points
• Crane lifting points for relocation where rolling access is restricted
• Stated safe working load of 1,102 lb.

Typical Applications

• Rail vehicle roof maintenance
• Track-maintenance machinery service
• Rooftop HVAC installation and maintenance
• Roof-section installation and repair
• Inspection of elevated rail-equipment components
• Rail-maintenance facilities with varying equipment heights
• Projects requiring roof access and perimeter edge protection

Custom Configuration

SafeSmart can configure the platform height, telescopic guardrail layout, access-stair arrangement, and mobility features around the rail vehicle or track machine. This allows the system to match the roof profile, service task, facility clearance, and required work area.

• Platform height range for the required equipment profile
• Telescopic guardrail configuration for roof width and geometry
• 70-degree or optional 45-degree stair access
• Foam-buffer placement for compatible machinery contact points
• Rolling or crane-lift relocation planning for the facility layout

Specifications

• Product Type: Height-adjustable rail roof access and edge protection platform
• SKU: ATMP
• Primary Application: Rail vehicle and track-machinery roof maintenance access
• Platform Height Range: 8 ft. 8 in. to 13 ft.
• Deck Surface: Raised and swaged
• Roof Protection: Telescopic guardrails with connecting guardrail frame
• Stair Access: 70-degree standard configuration; 45-degree option available
• Platform Perimeter: Handrails, midrails, and toe boards
• Mobility: Large foam-filled tires
• Leveling: Wind-down jacks
• Relocation: Crane lifting points
• Safe Working Load: 1,102 lb.

Confirm the Required Platform Configuration

Final platform height, roof-guardrail arrangement, access configuration, equipment fitment, and facility conditions should be reviewed for the intended rail-maintenance application. Contact SafeSmart to confirm the appropriate configuration.
