STAIRS AND MODULAR BRIDGE SYSTEMS

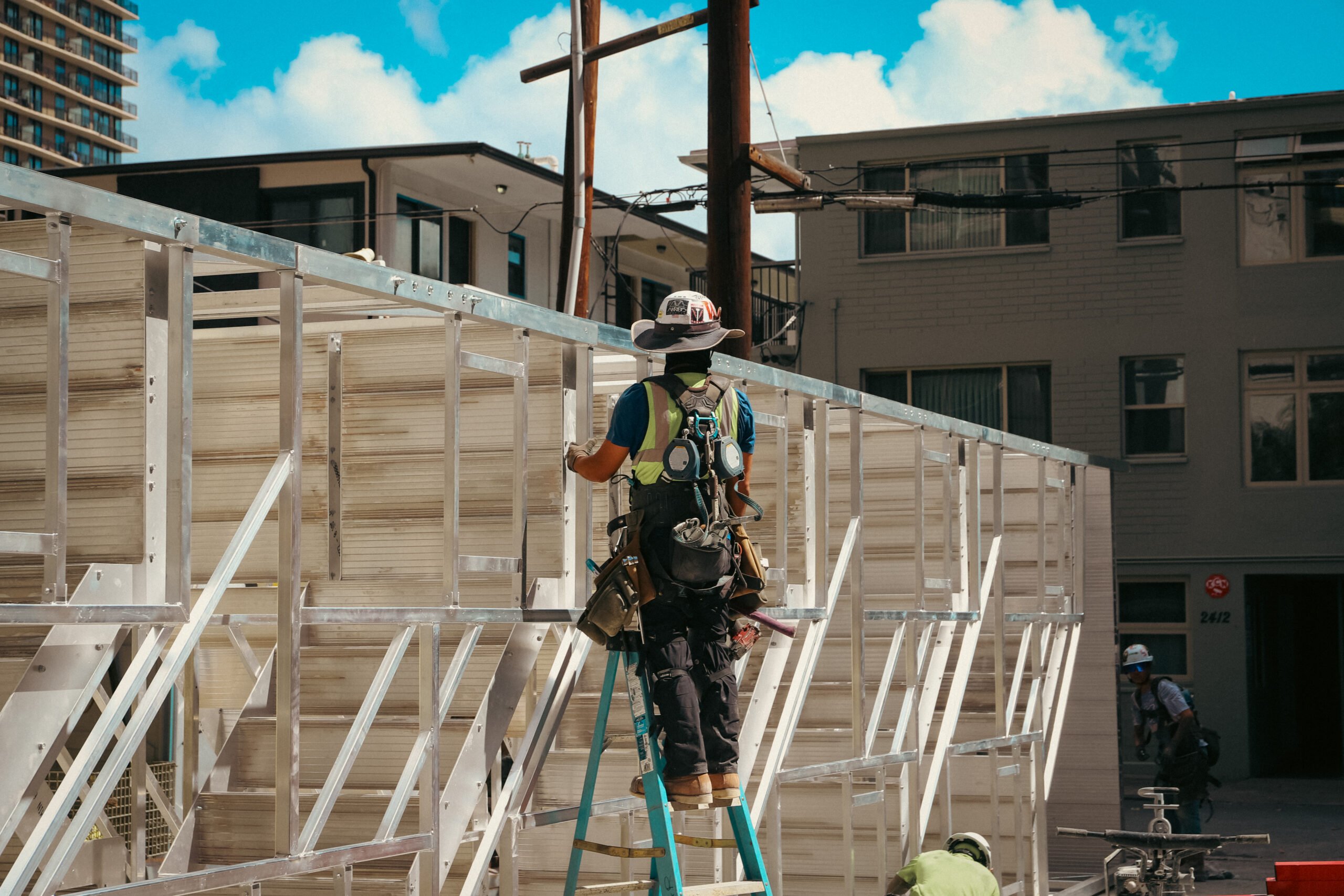

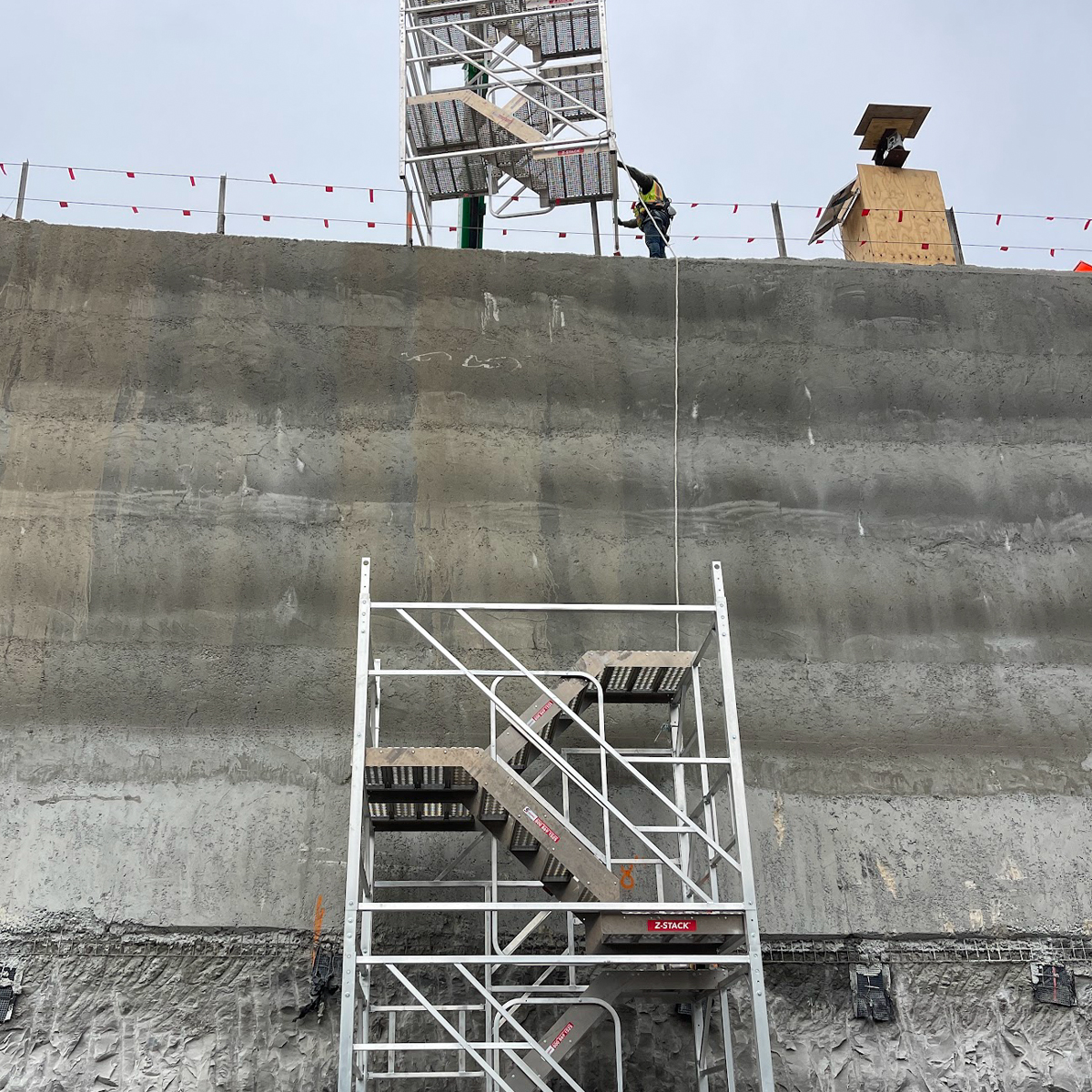

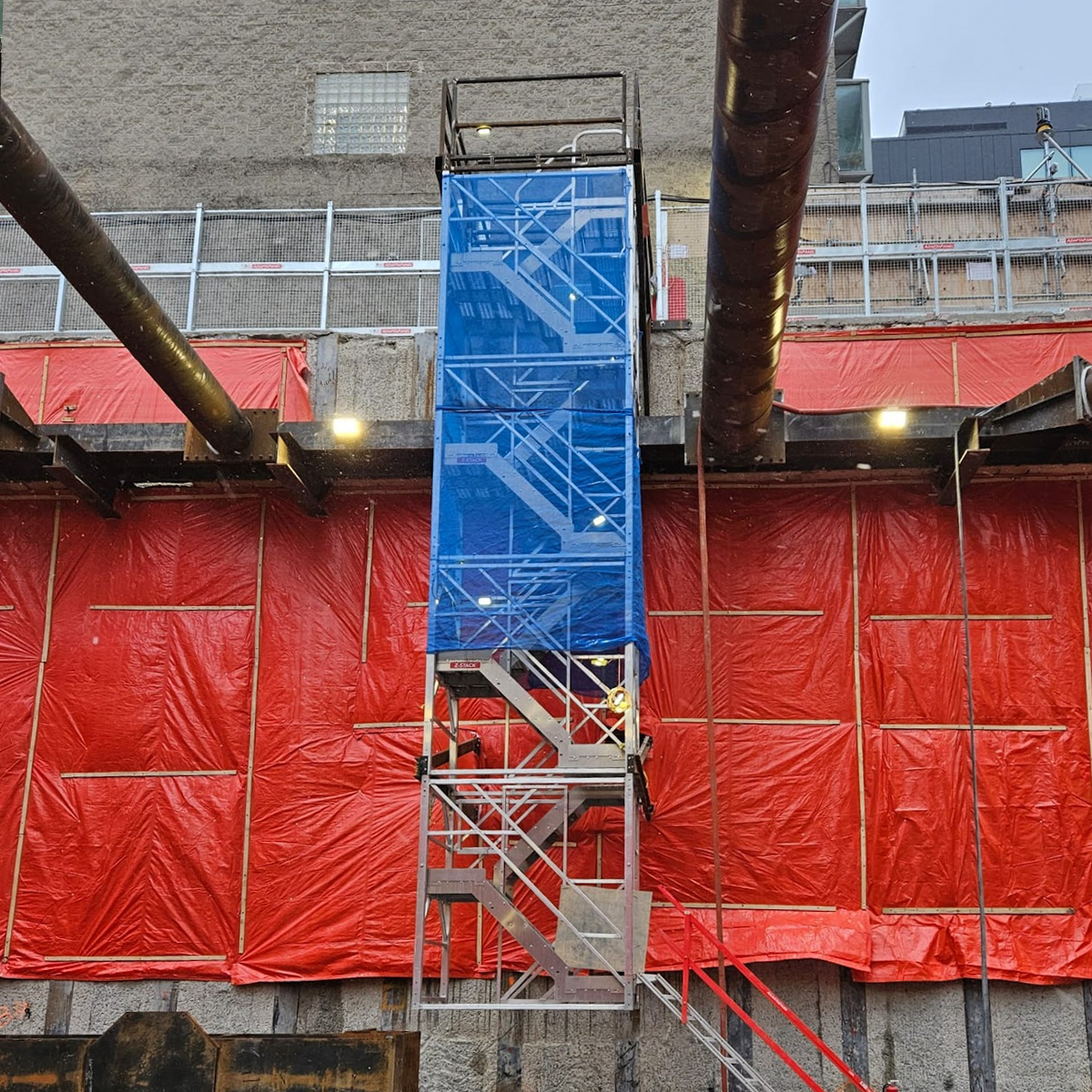

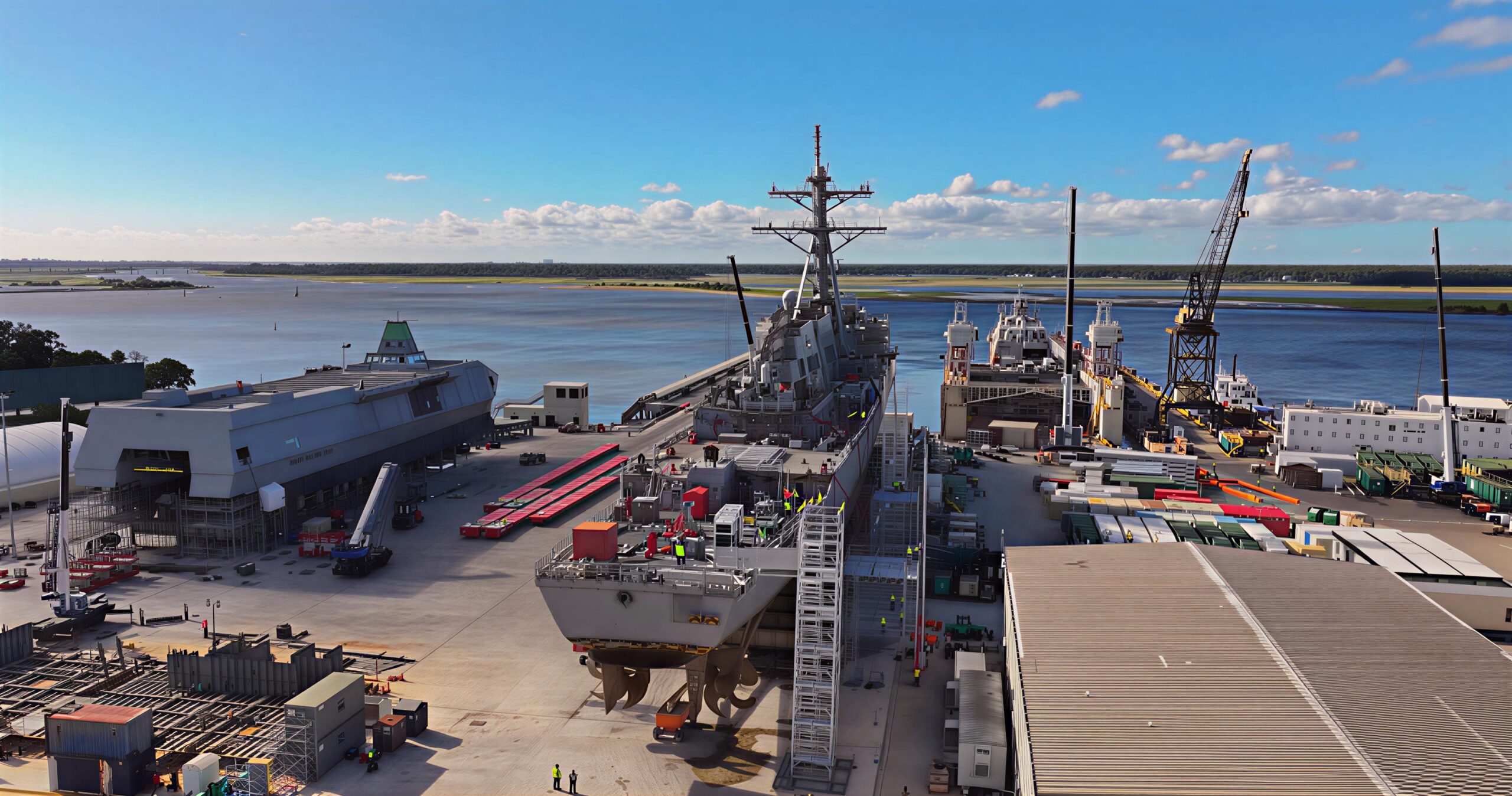

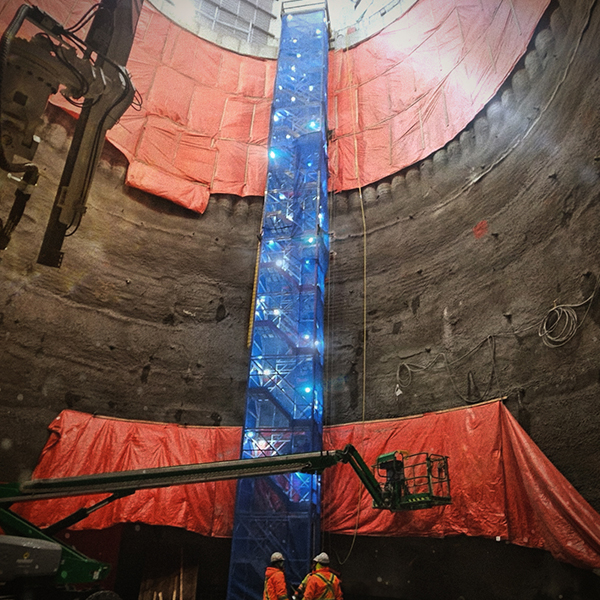

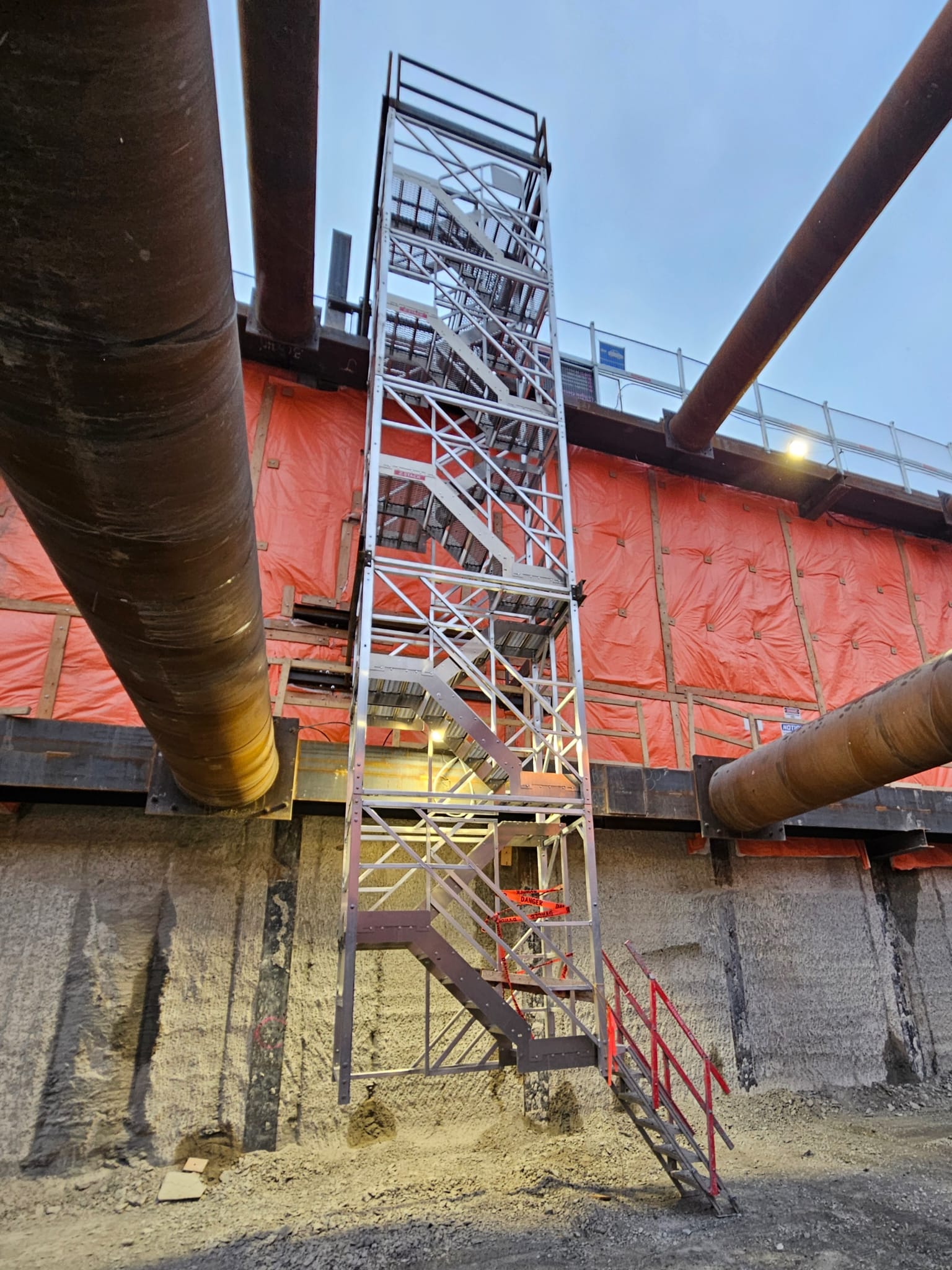

THE INNOVATIVE MODULAR STAIR SYSTEM THAT’S REVOLUTIONIZING VERTICAL ACCESS, DELIVERING SAFE AND EFFICIENT TEMPORARY OR FIXED HEIGHT OR PIT ACCESS AND FULLY ENCLOSED BRIDGING.

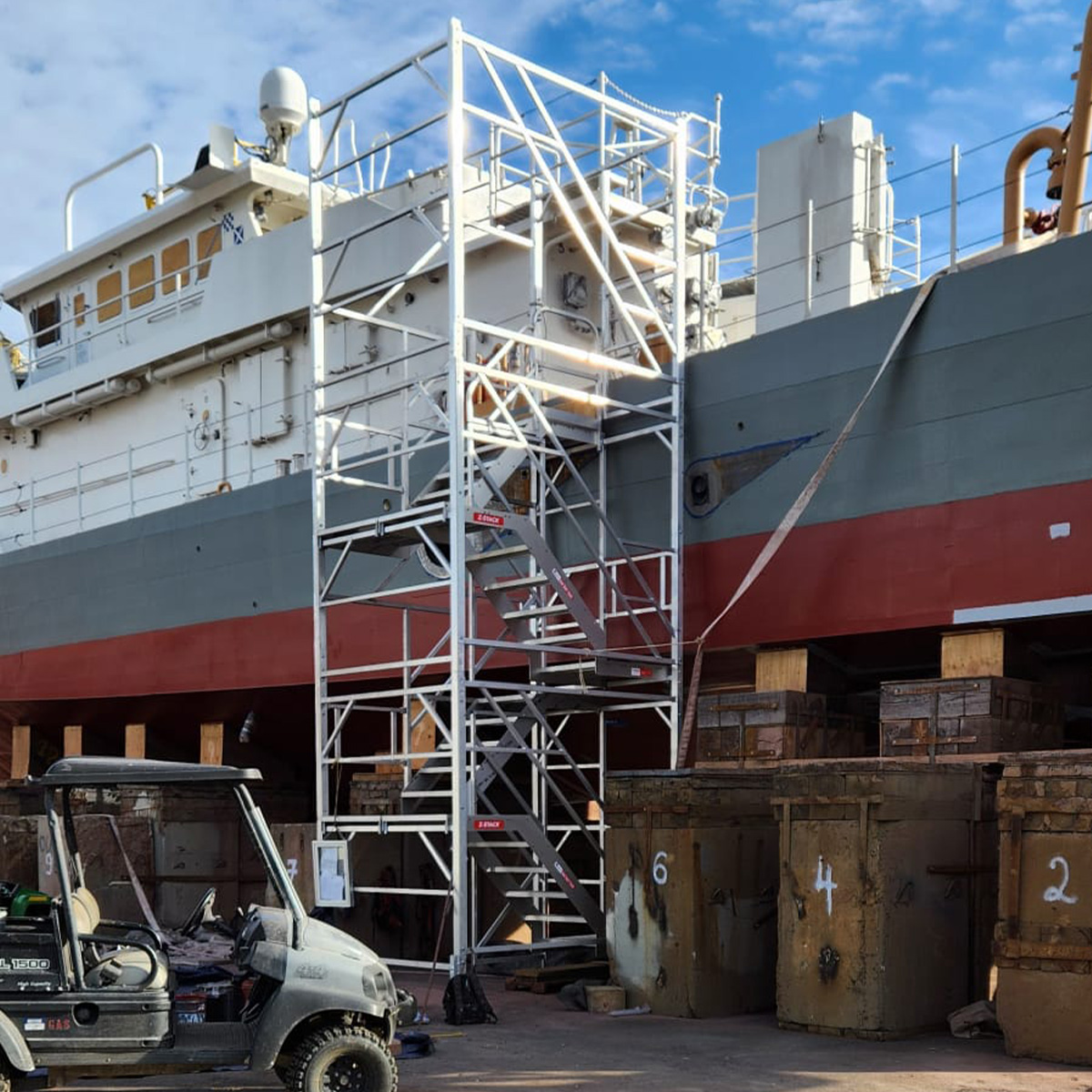

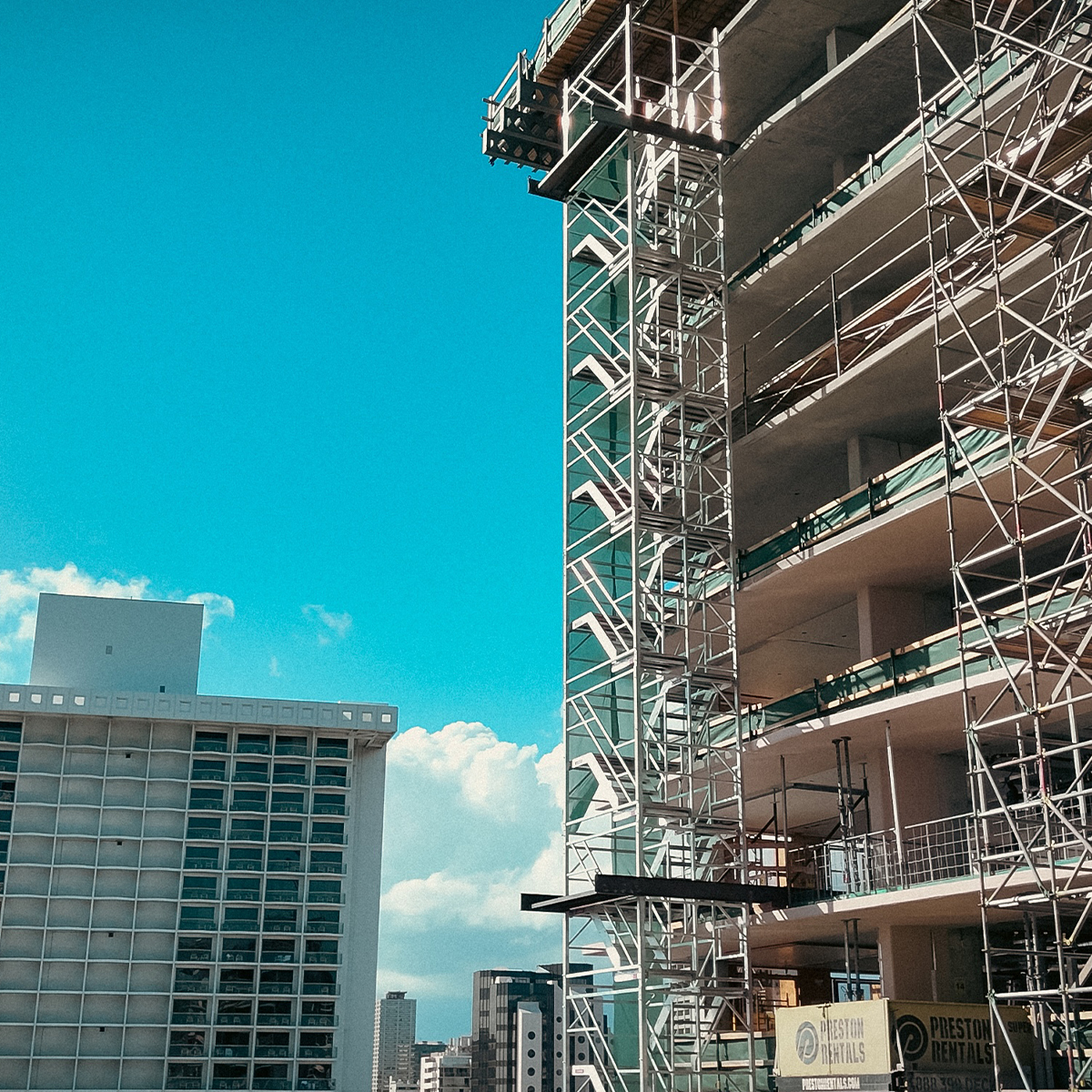

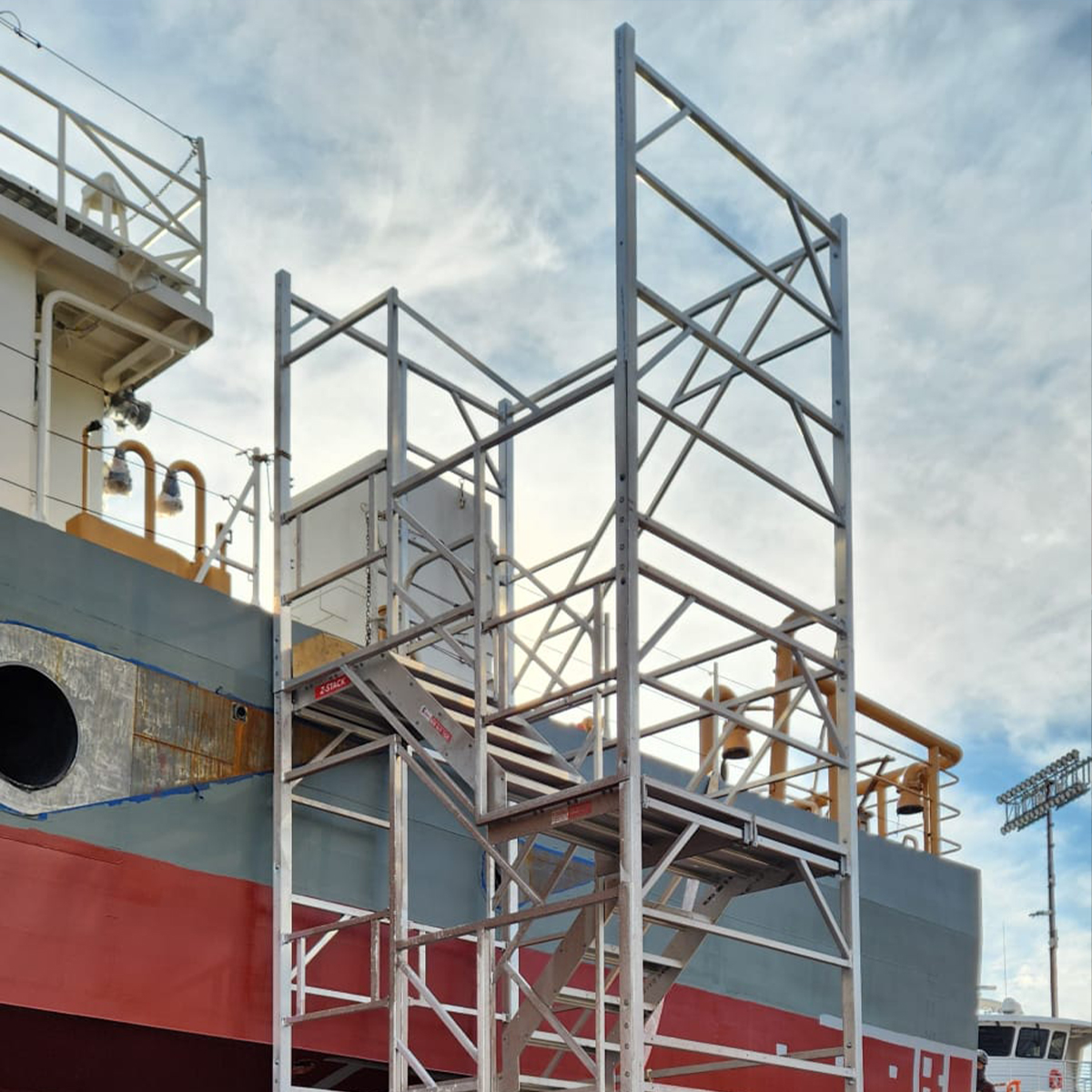

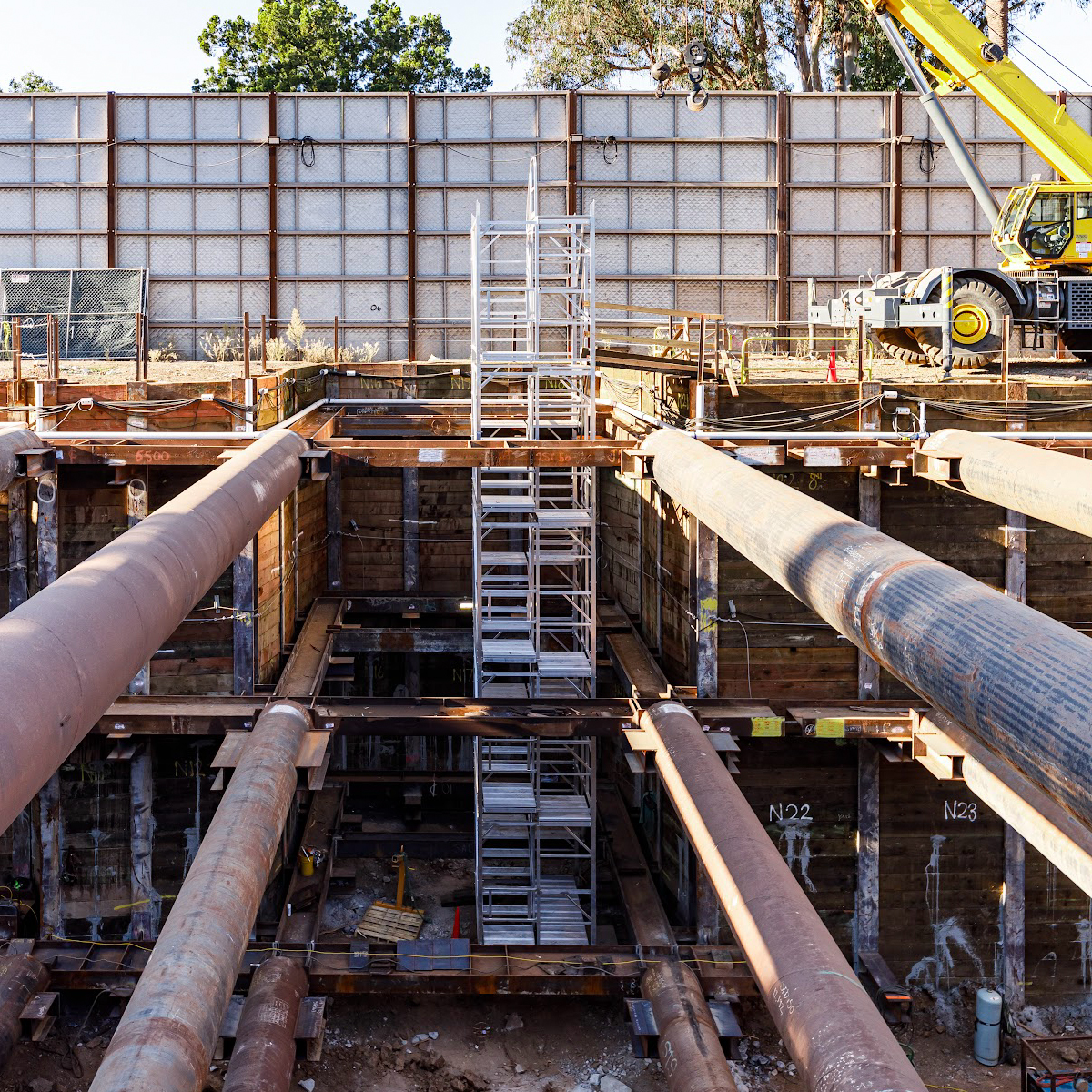

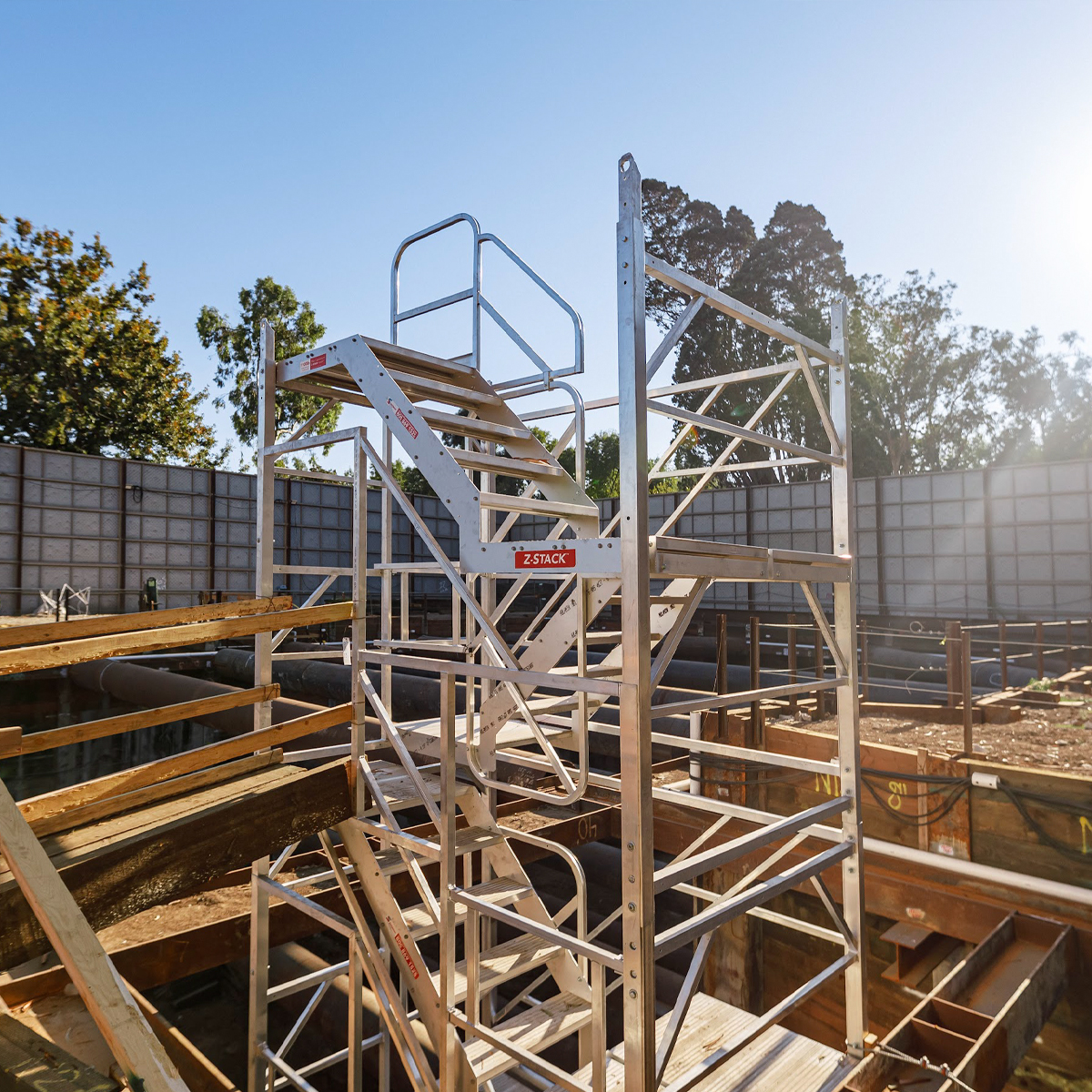

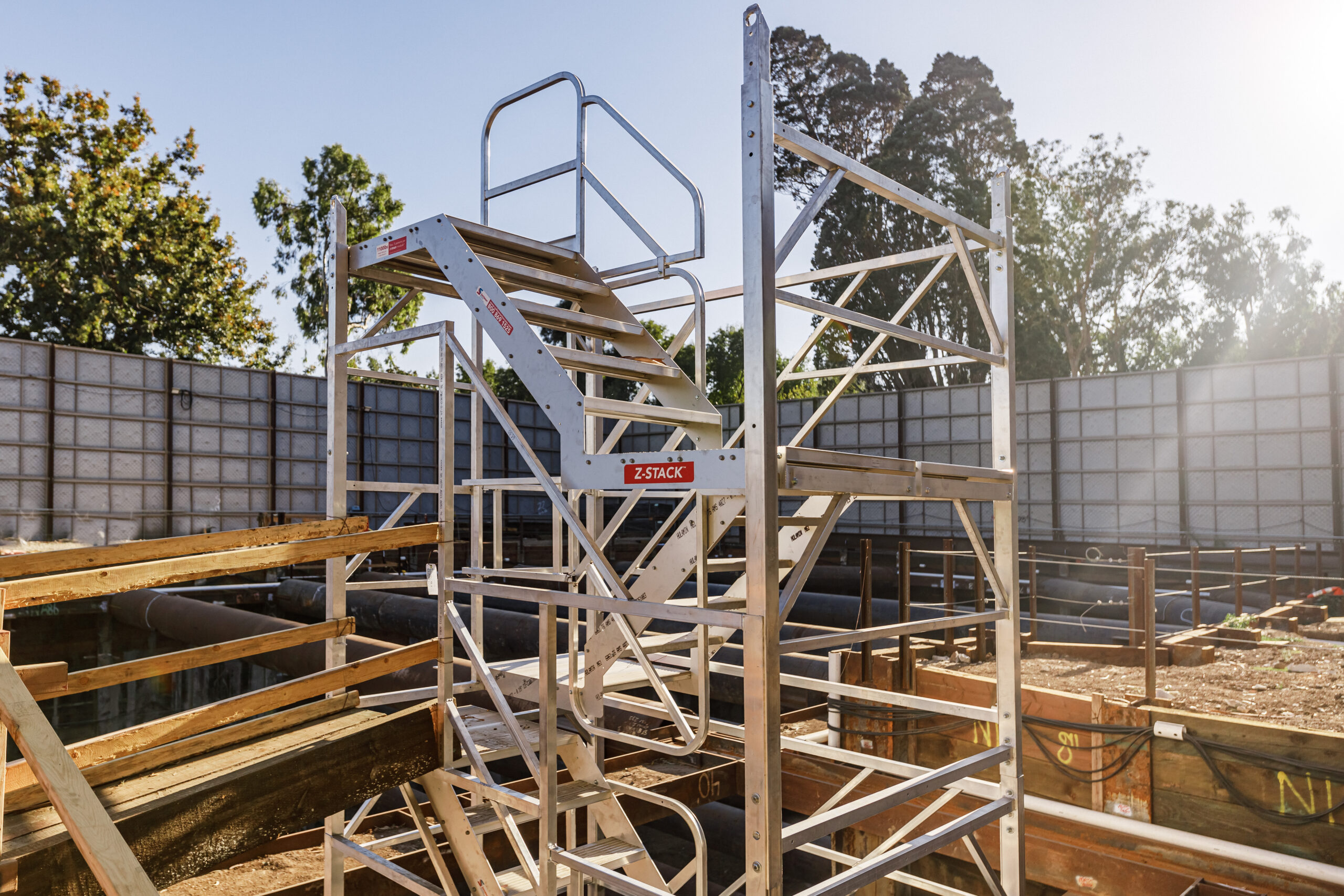

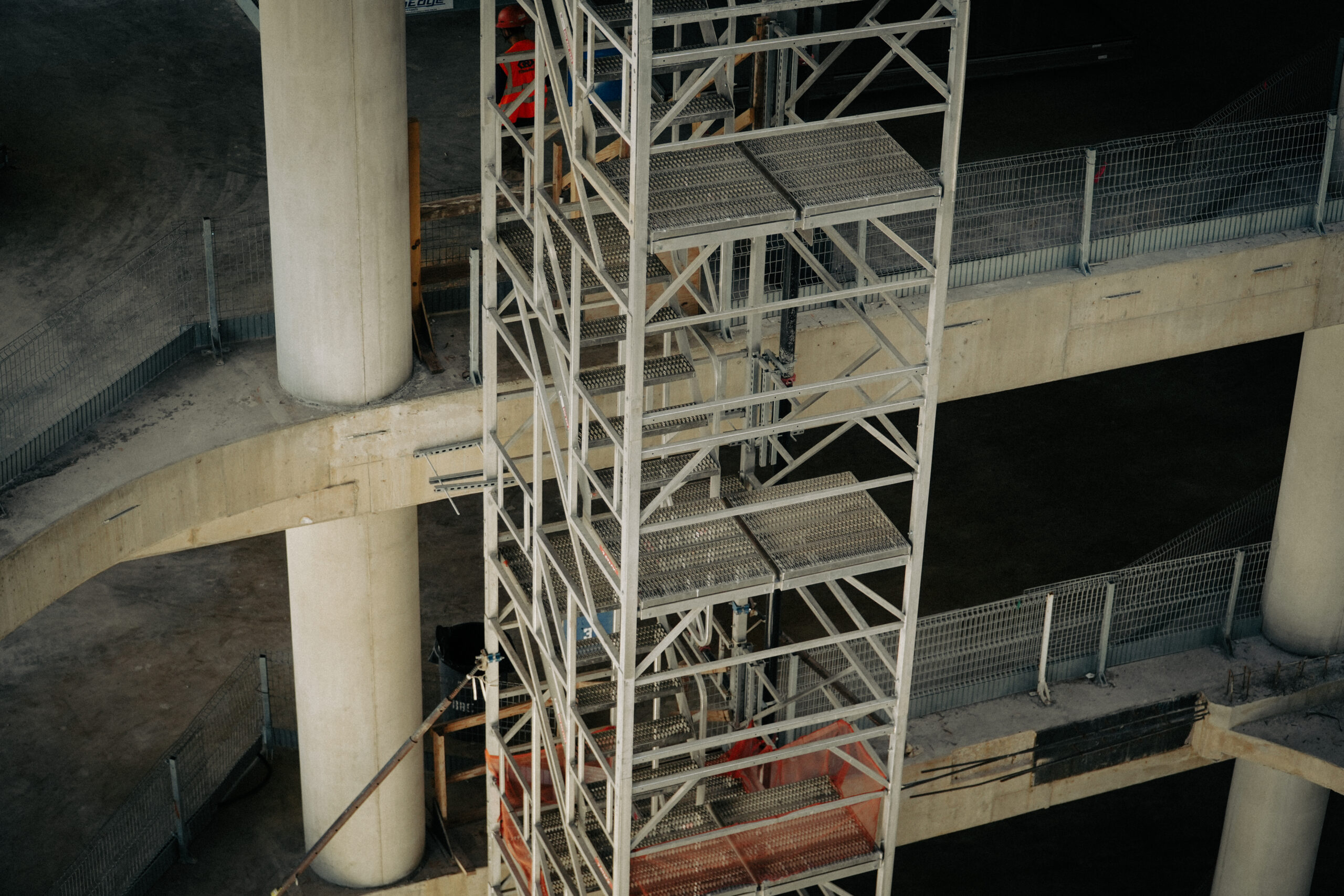

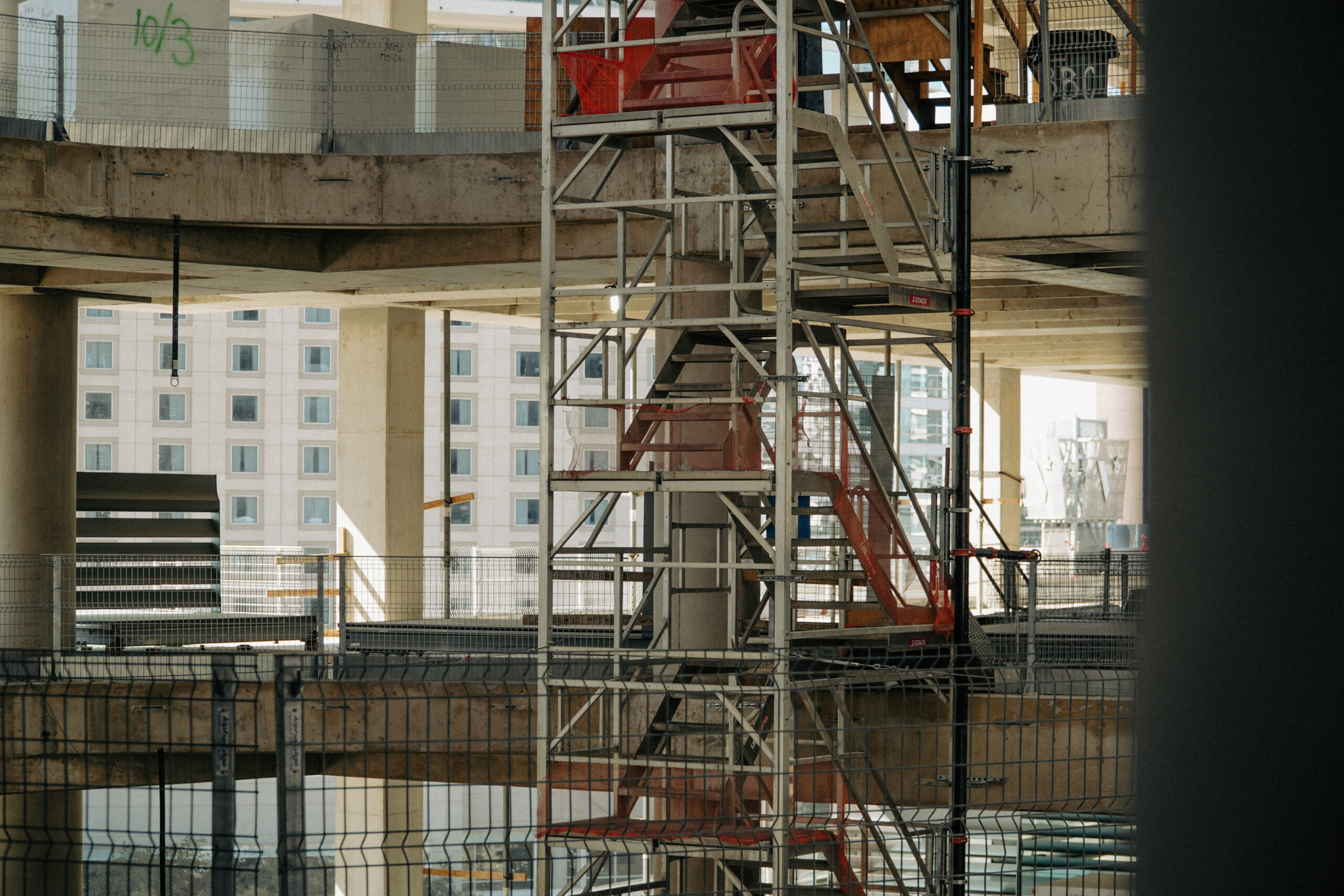

Z-Stack is the new, modular stair system that’s revolutionizing vertical access on work sites. It’s fast, easy-to-assemble and requires way less manpower and cost to install than traditional scaffolding. And, unlike stair towers made from scaffolding, Z-Stack can be pre-stacked off-site then simply craned into place. That makes Z-Stack supremely easy to customize to individual project requirements, while its robust, rust-resistant aluminium construction is ideal for large-scale, long-term infrastructure projects and permanent egress and access to OSHA requirements.
LIGHTWEIGHT
Made from high strength tensile T6, 6061 marine grade aluminum. Stair module only weighs 480 lb.
EASY TRANSPORT

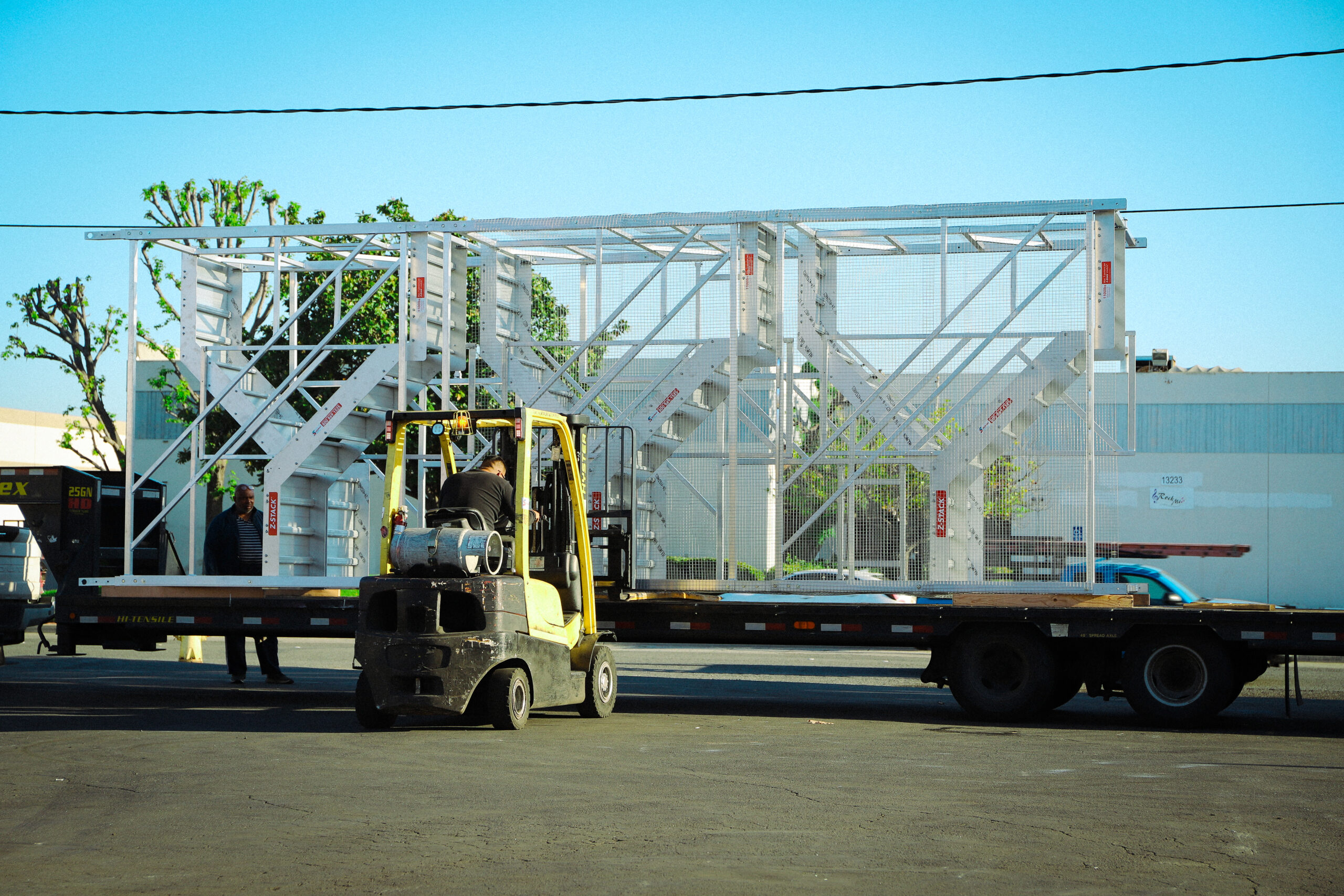

Modules fully welded and can be stacked length ways onto trucks, ready for use.
RE-USEABLE
As they can be easily reconfigured, they can be re-used again on new projects.

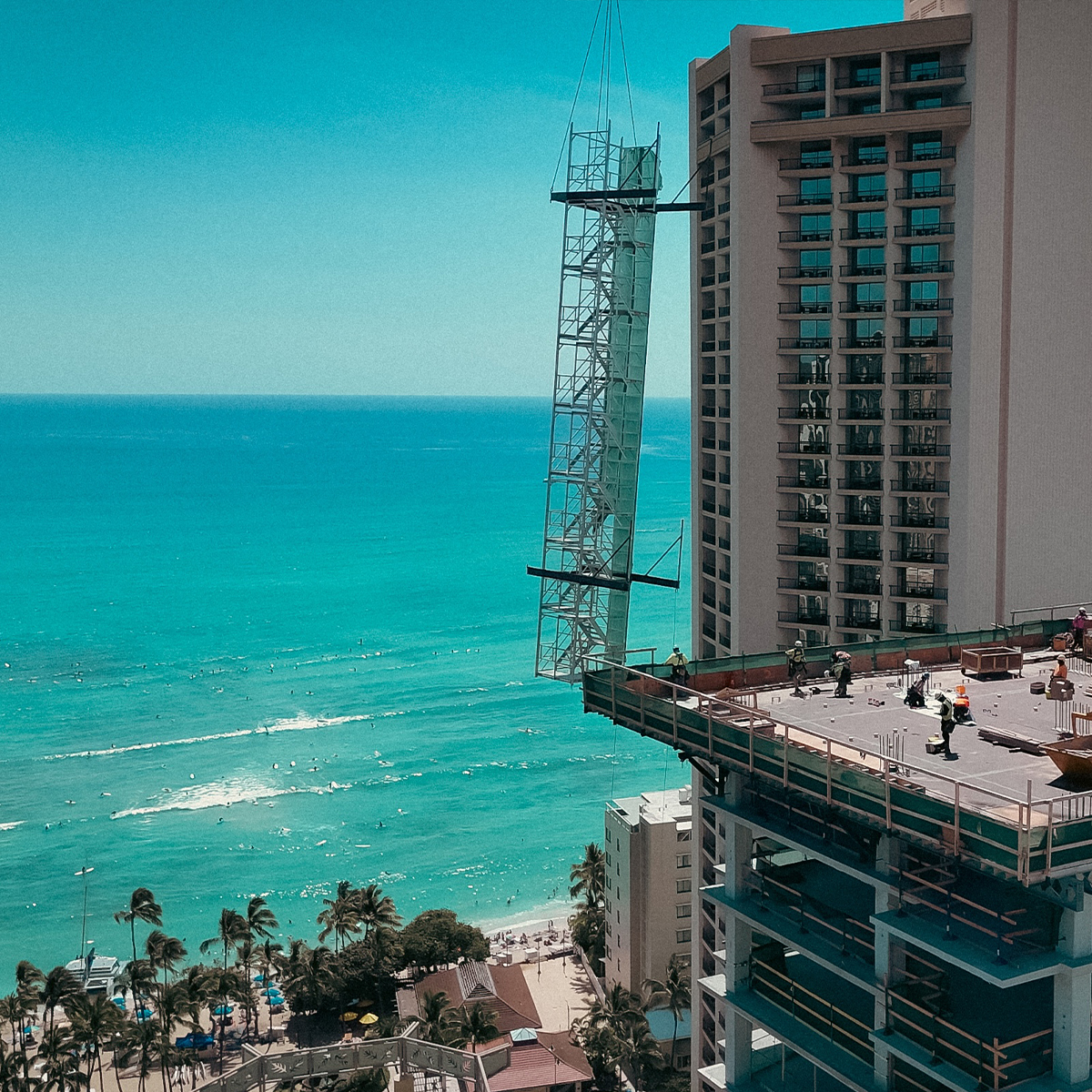

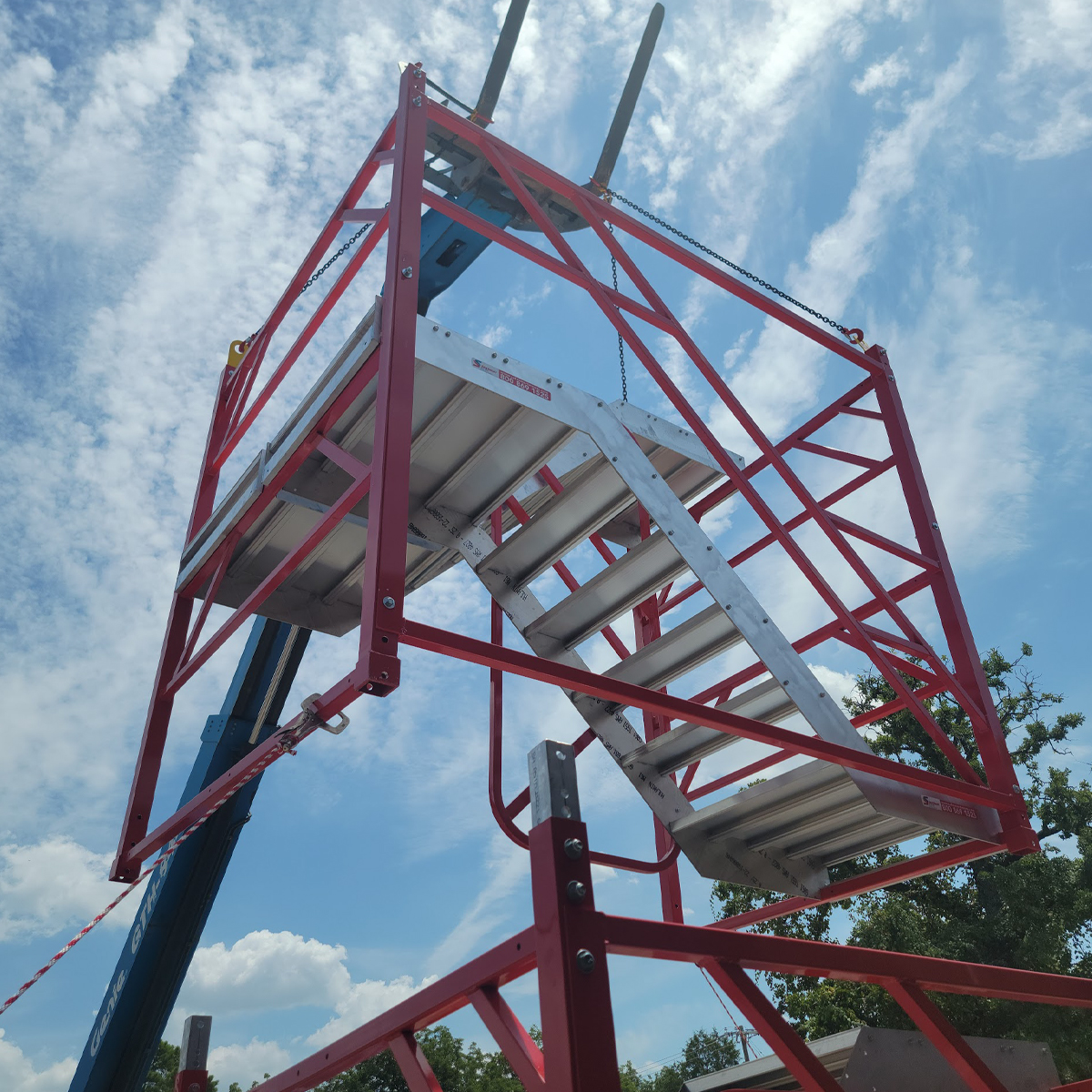

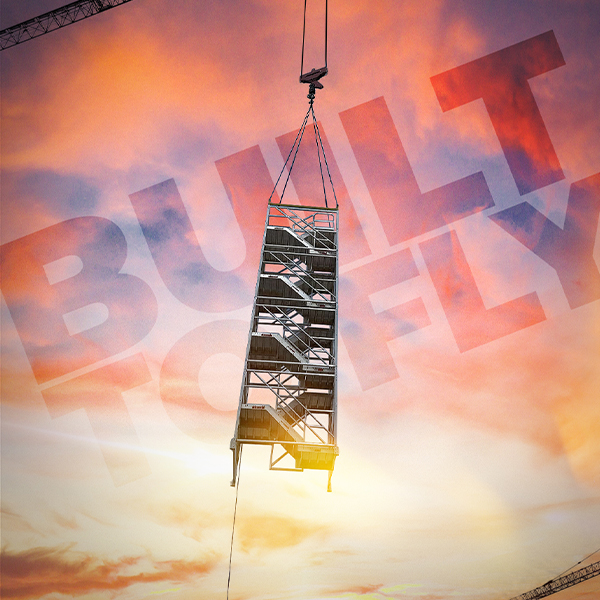

CRANE LIFTABLE

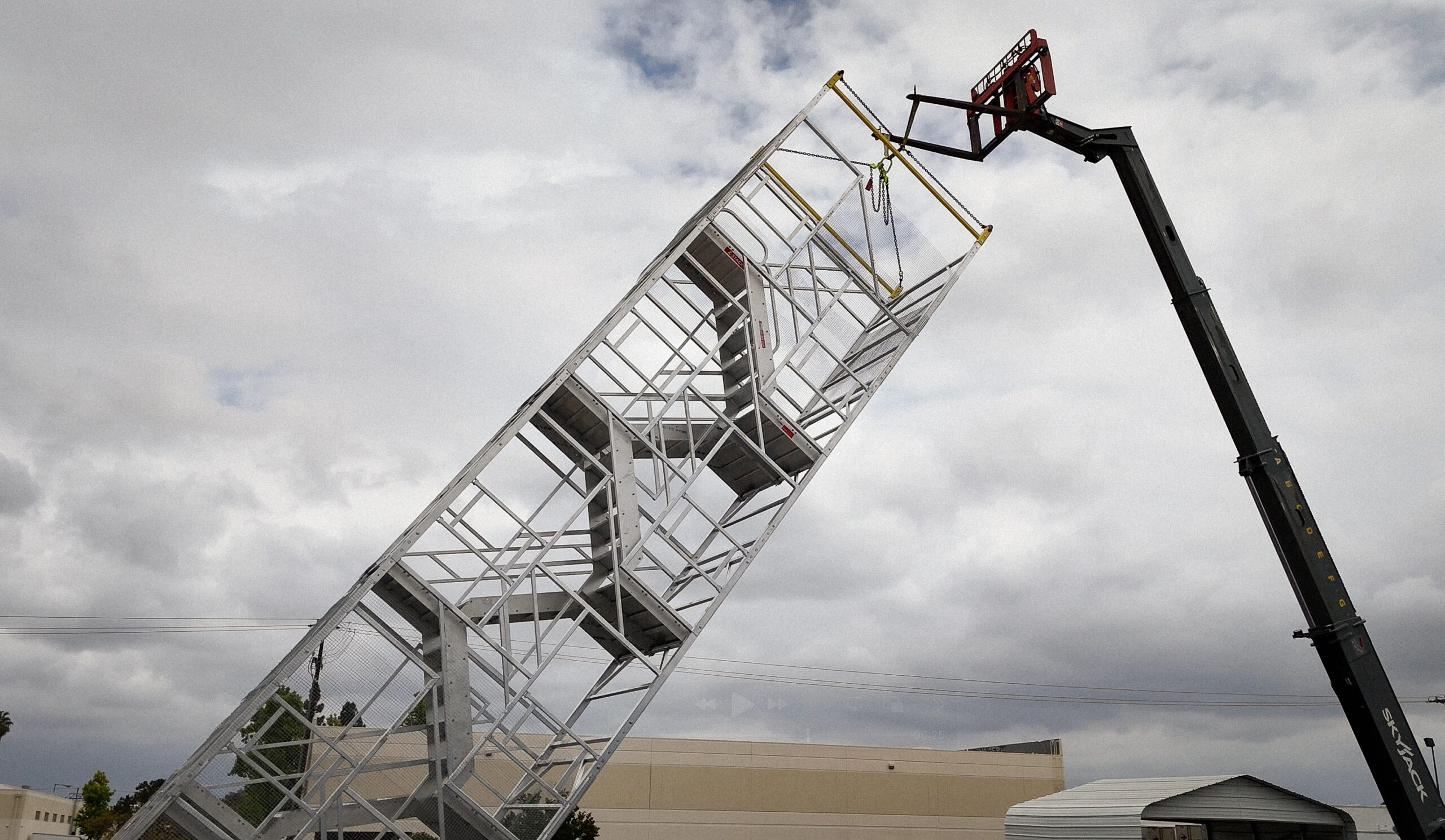

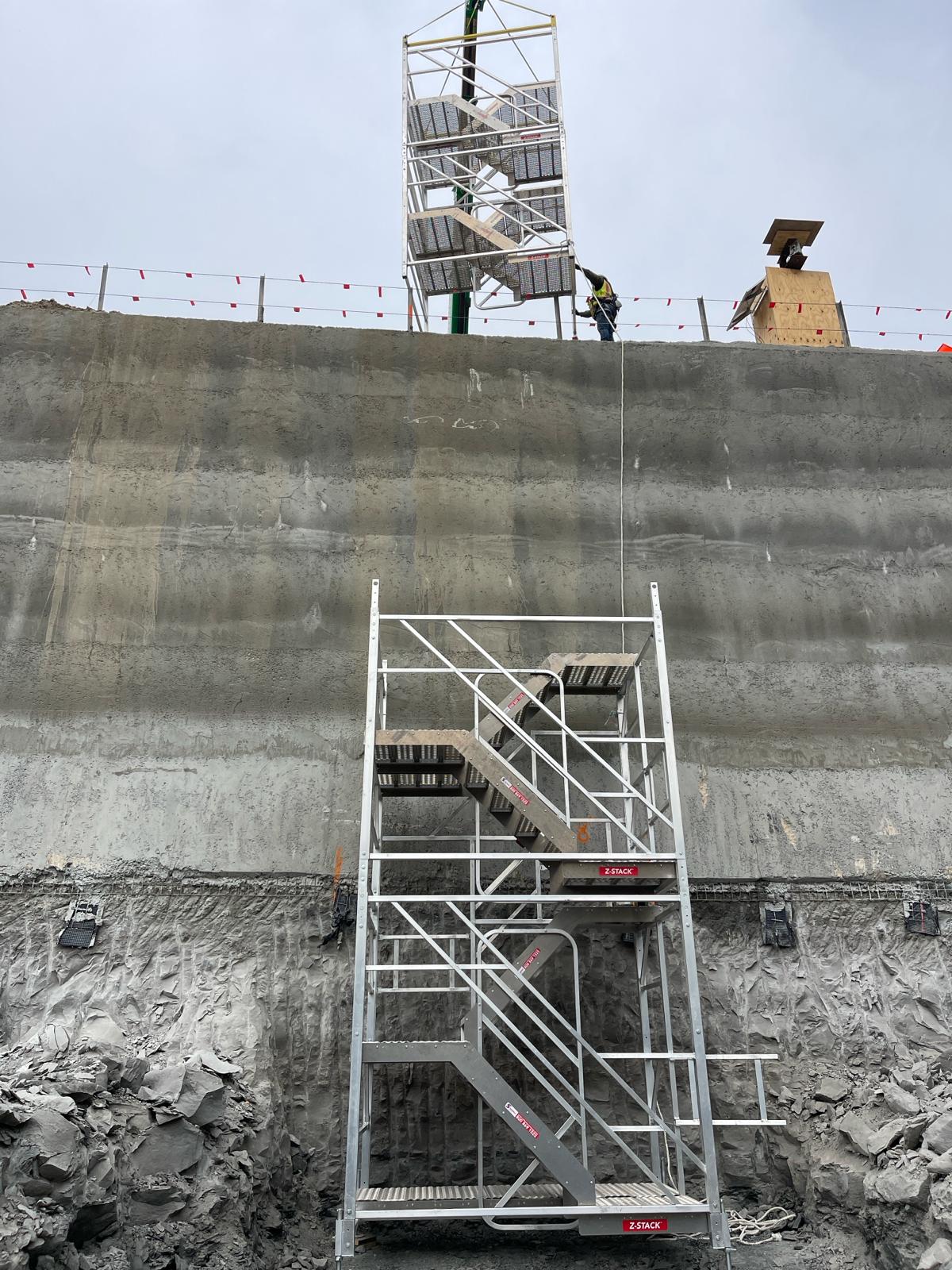

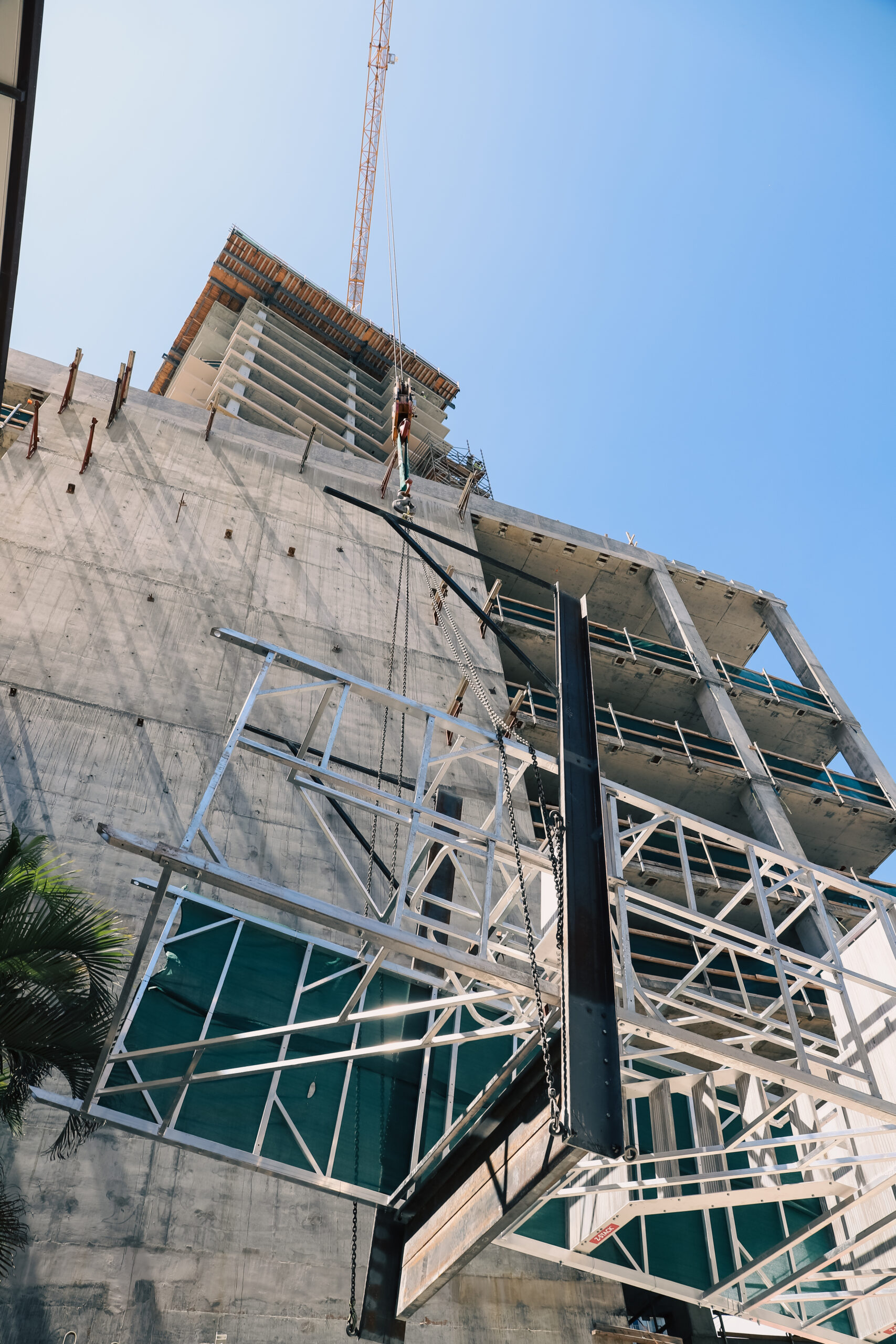

Stair modules can be individually lifted in/out OR whole stair can be craned as required
FAST INSTALLATION
Pre-engineered for permanent egress & access with a super fast installation times multilevel

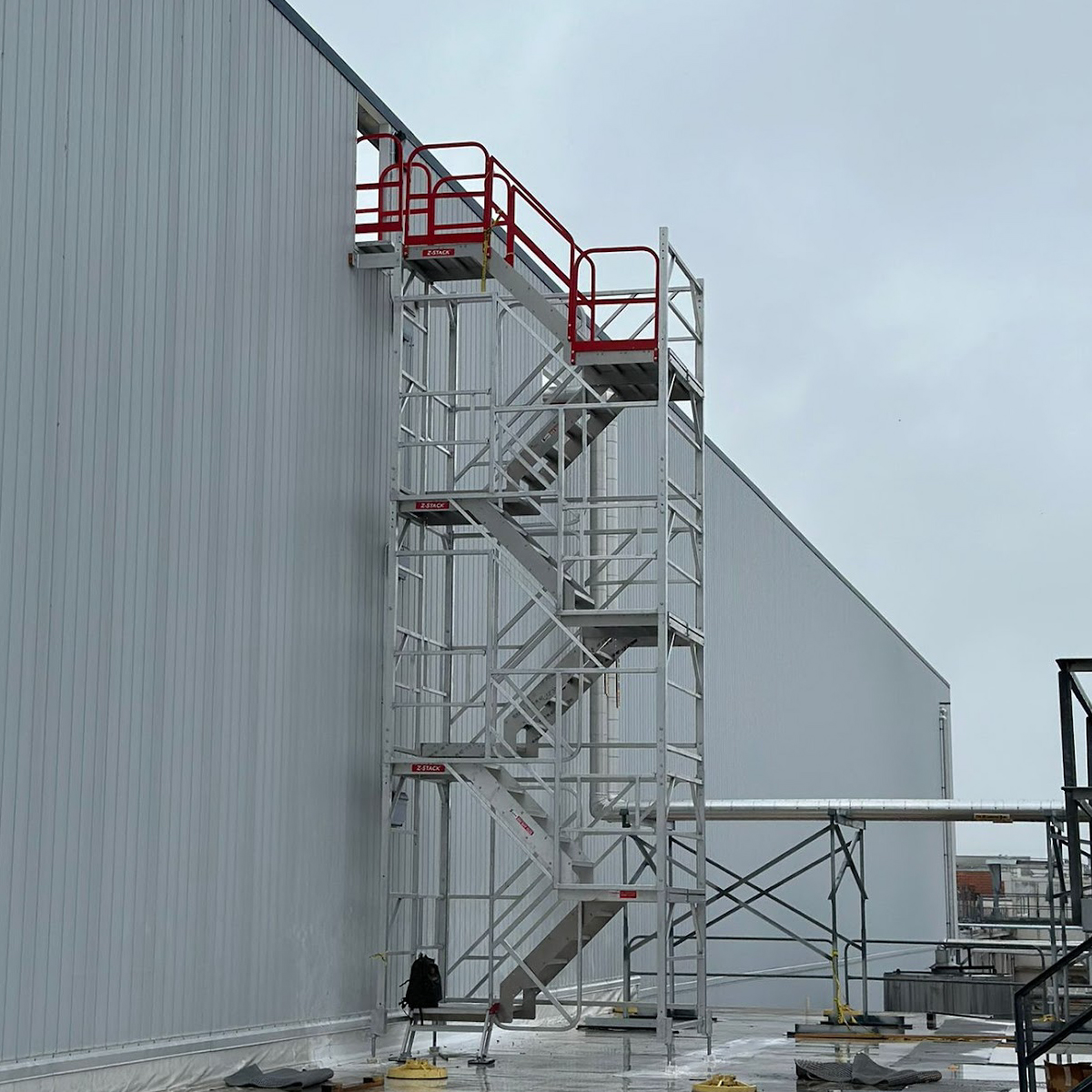

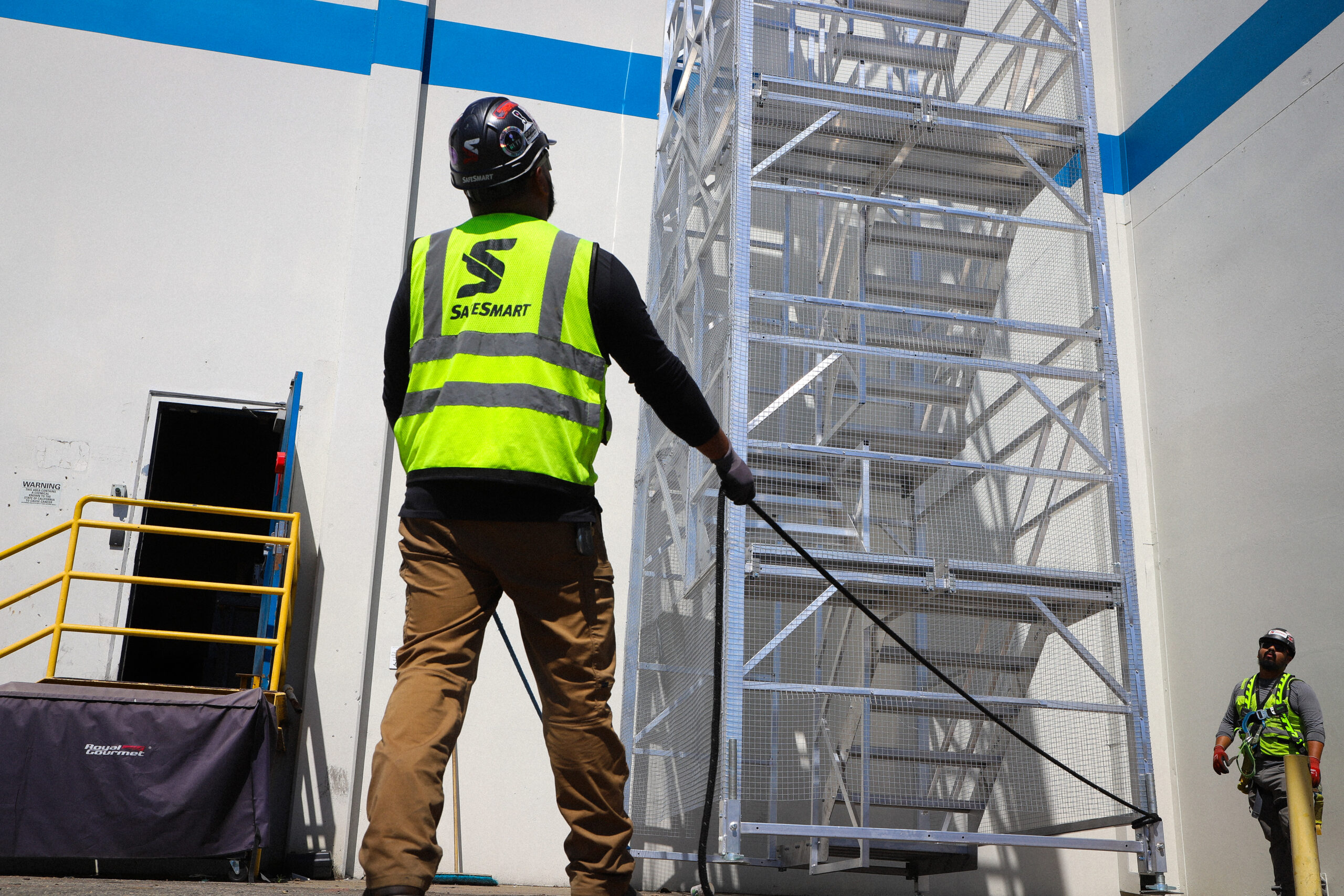

ROOF ACCESS
Lightweight for roof access, even when supported on lower roof

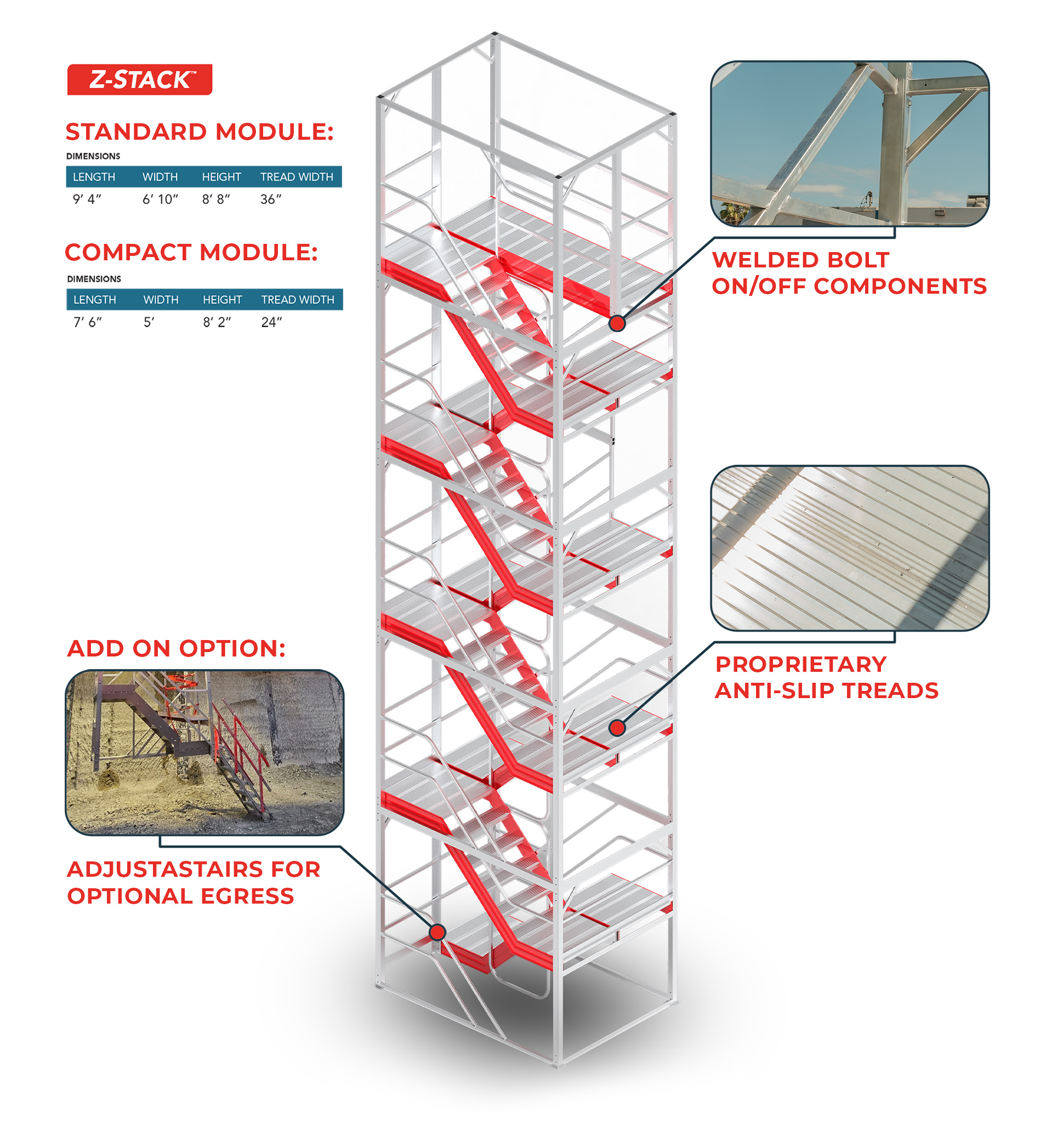

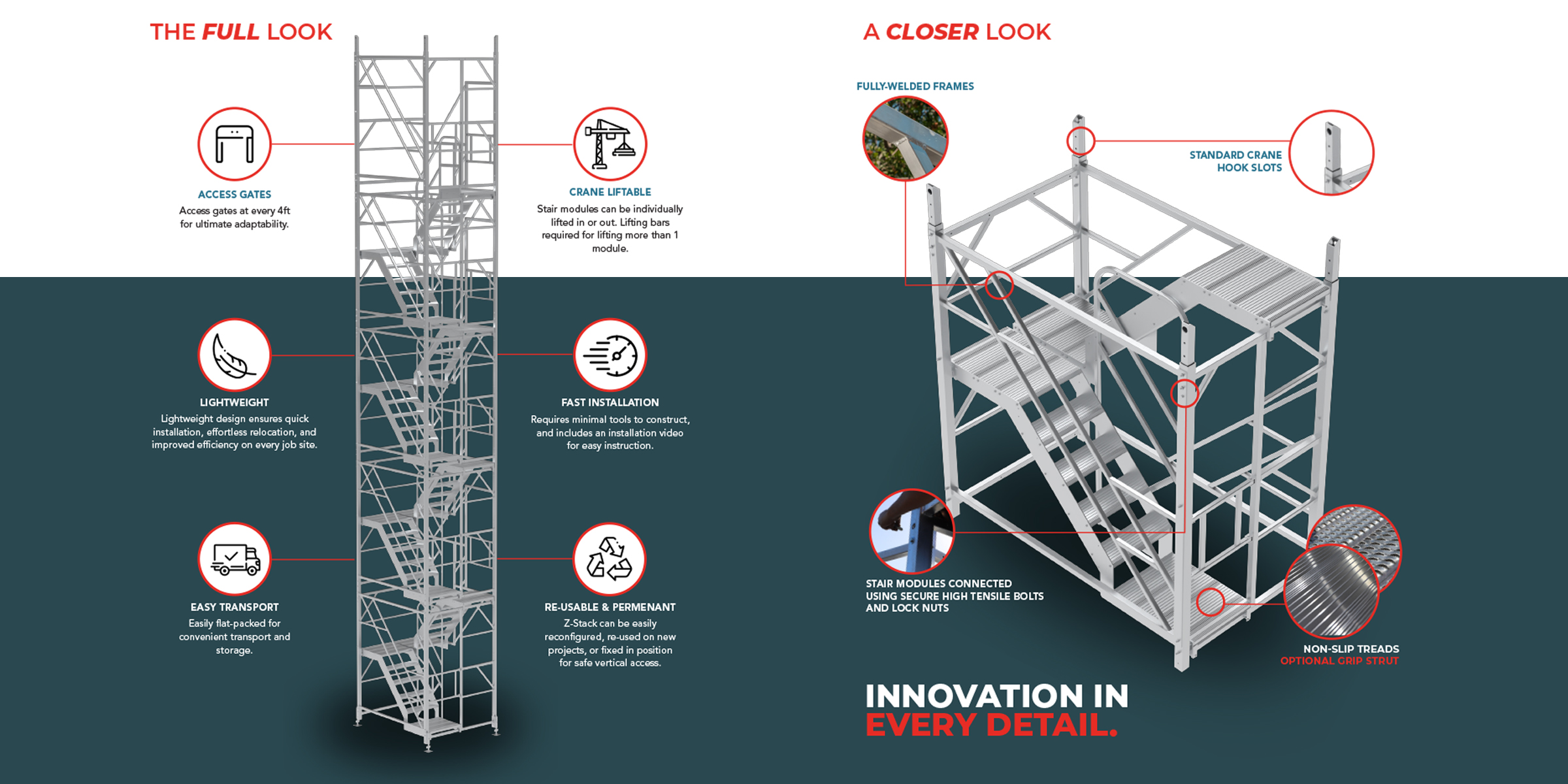

KEY FEATURES
Modular box stair system

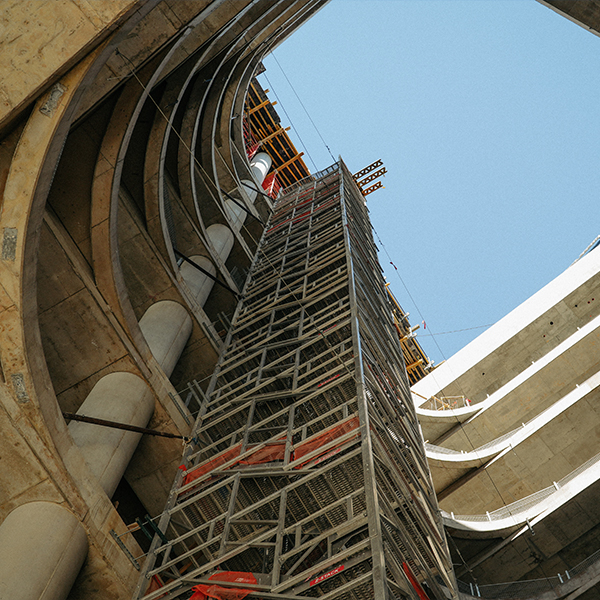

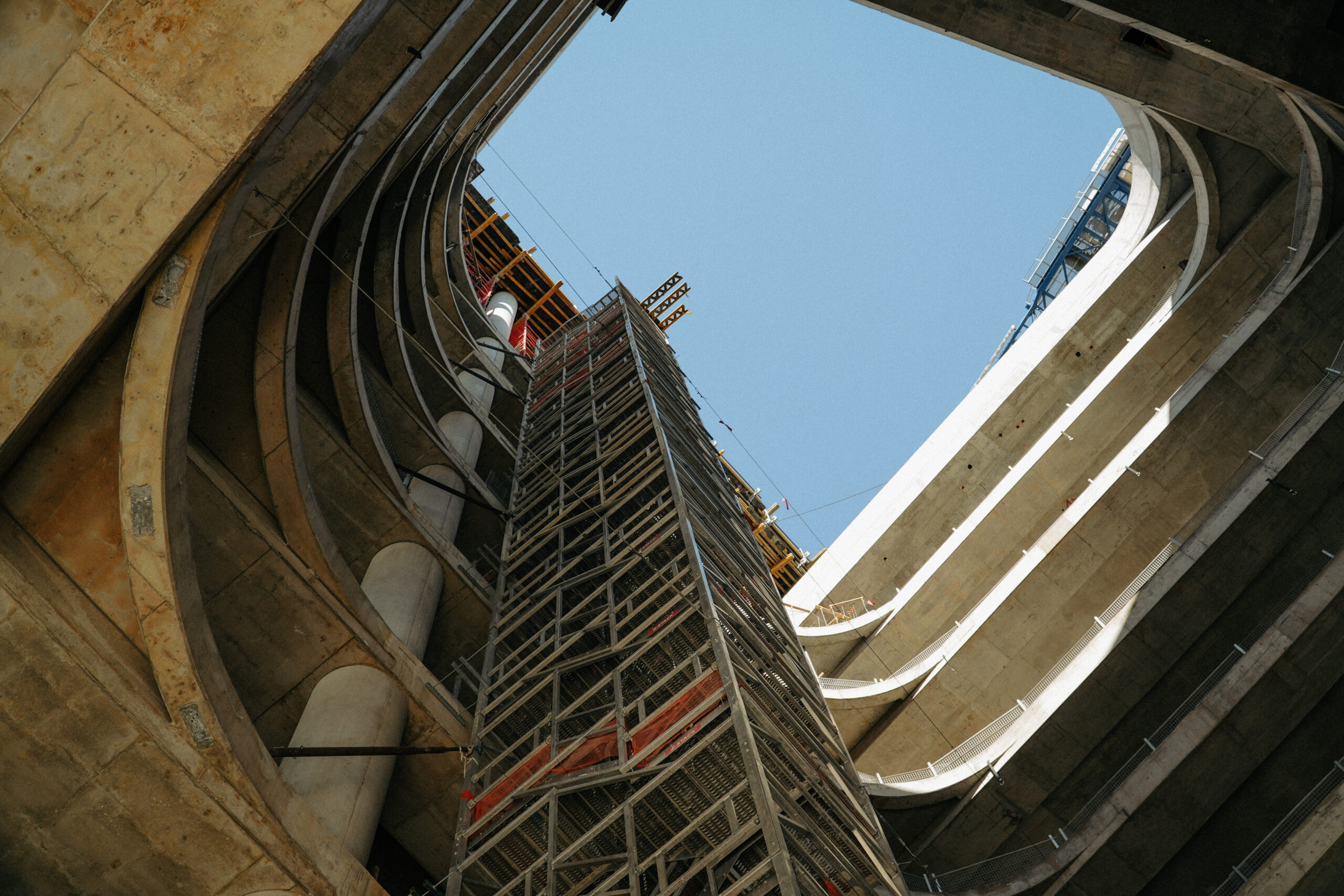

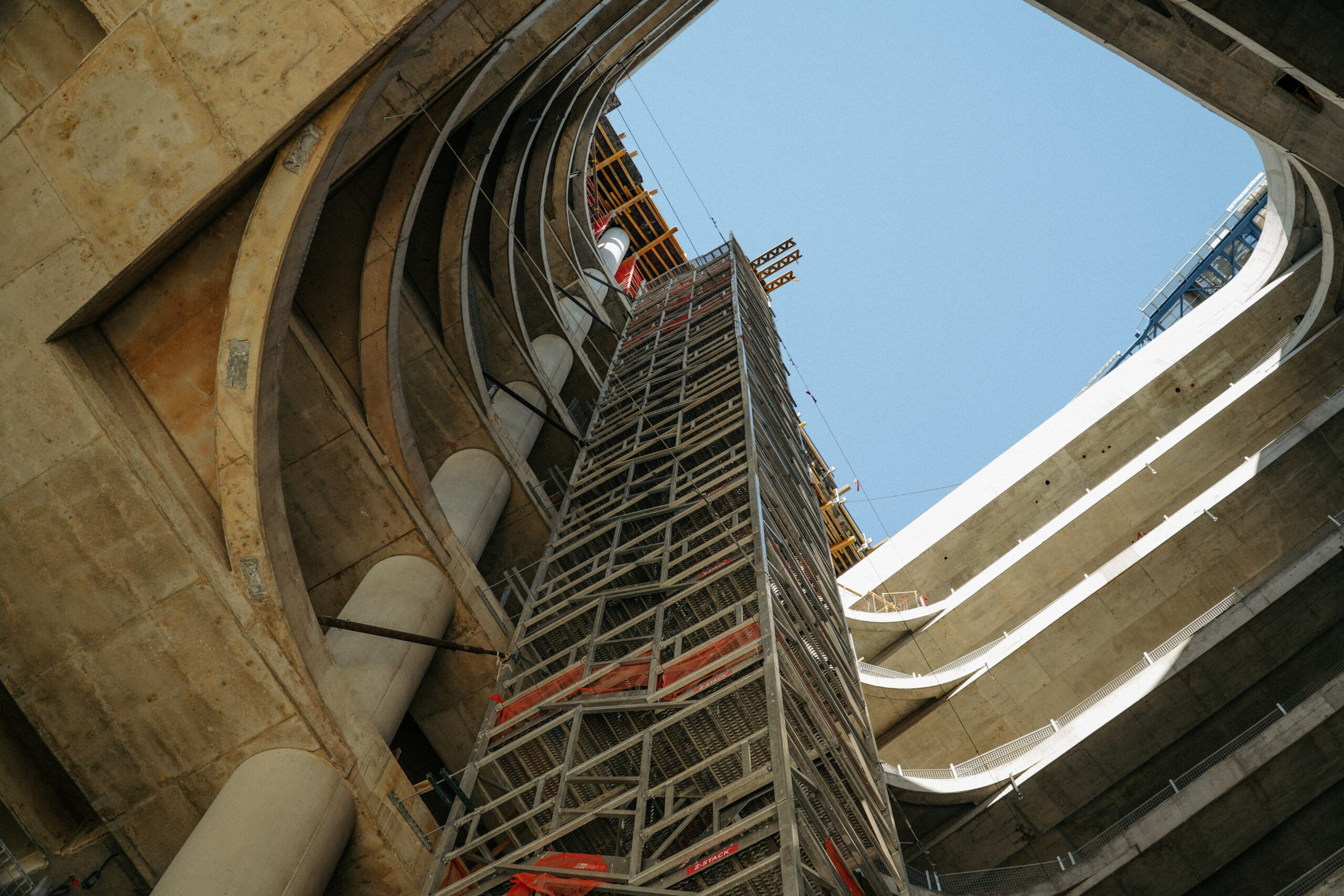

Stack modules to create stair towers of any height
Quick-and-easy install & relocate; no scaffolding
Strong yet lightweight aluminium structure
Ideal for complex project environments

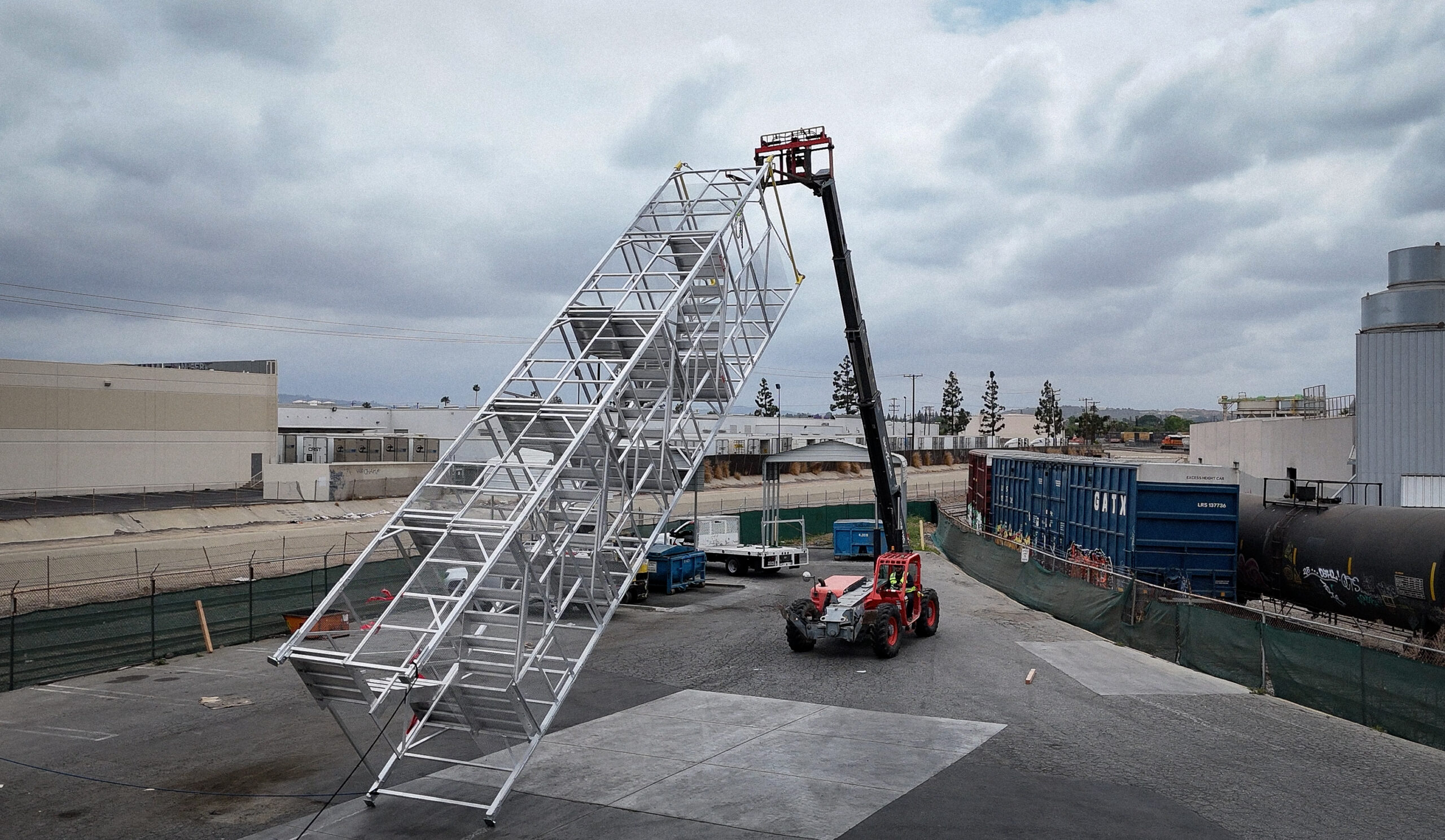

Assemble off-site and crane into place
Able to be flat-packed for storage or transport
Modules provide the ultimate in flexibility
2.5kPA weight rating

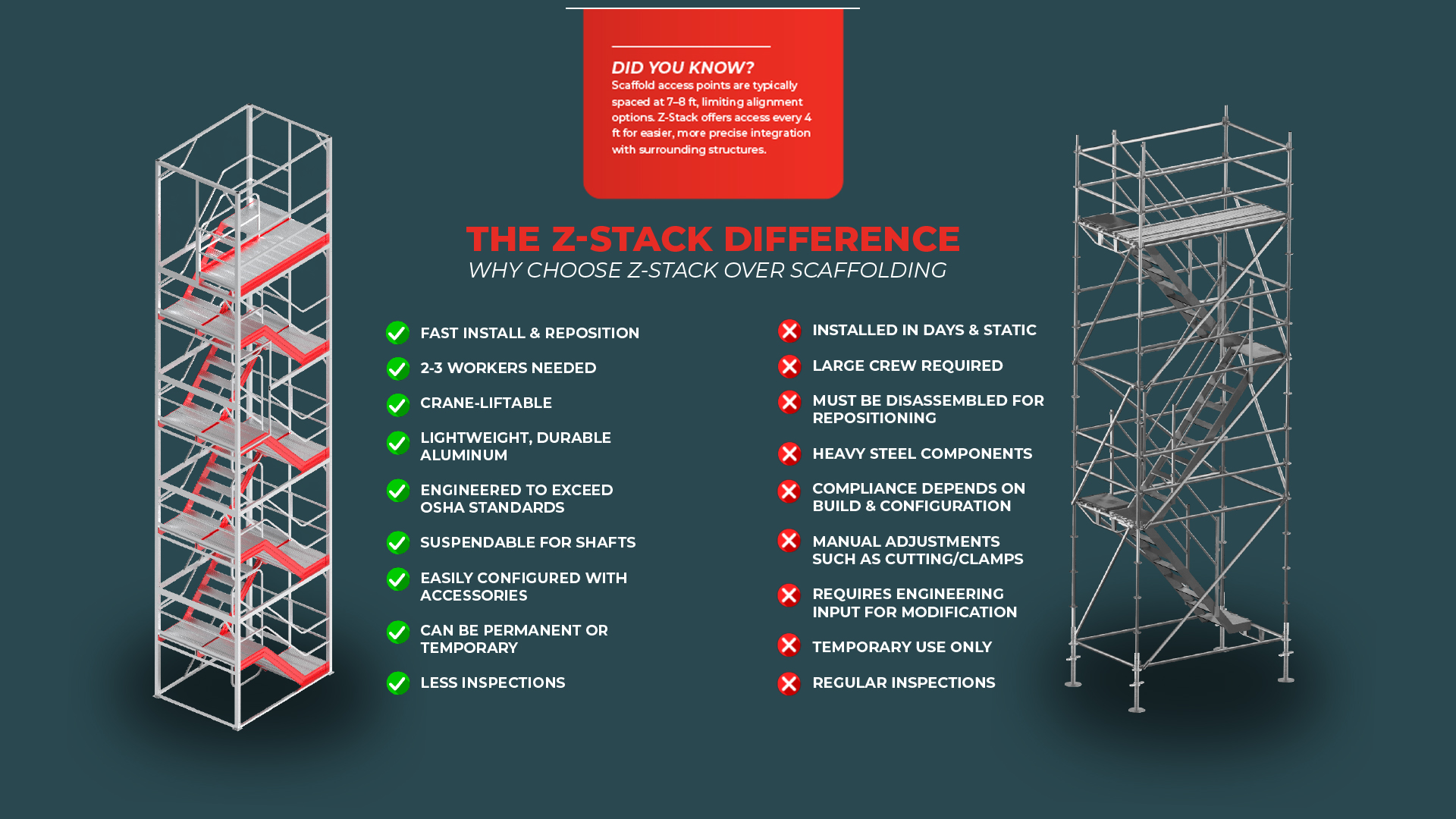

Uses less space than scaffolding
Z-STACK MODULES
Z-STACK TOP
MODULE
DIMENSIONS
| LENGTH | WIDTH | HEIGHT |
|---|---|---|
| 9’-4” | 6’-10” | 4’-2” |
COMPONENTS
| QTY | DESCRIPTION |
|---|---|
| 1 | Top handrail frame assembly |
| 2 | 36” wide 45-degree Z-Stairs with 4 Plank landing at top and bottom |
| 1 | Middle handrail frame |
| 4 | High strength steel joiners, also rated for craning |
Z-STACK STANDARD/MIDLEVEL
MODULE
DIMENSIONS
| LENGTH | WIDTH | HEIGHT |
|---|---|---|
| 9’-4” | 6’-10” | 8’-8” |
COMPONENTS
| QTY | DESCRIPTION |
|---|---|
| 1 | End frame |
| 2 | Gated end frame |
| 1 | Standard side brace |
| 4 | 36” wide 45-degree Z-stairs with 4 plank landing at top and bottom |
| 4 | Middle handrail frame |
| 4 | Aluminum joiners, also rated for craning for one module |
Z-STACK BOTTOM
MODULE
DIMENSIONS
| LENGTH | WIDTH | HEIGHT |
|---|---|---|
| 9’-4” | 6’-10” | 8’-8” |
COMPONENTS
| QTY | DESCRIPTION |
|---|---|
| 1 | End frame |
| 2 | Gated end frame |
| 1 | Standard side brace |
| 1 | Access side brace |
| 3 | 36” wide 45-degree Z-stairs with 4 plank landing at top and bottom |
| 1 | Middle handrail frame |
| 4 | Aluminum joiners, also rated for craning for one module |
| 4 | Adjustable scaffold base jacks per Z-Stack assembly |
Z-STACK COMPONENTS AND ATTACHMENTS
END FRAME
Each frame comes with joiners with integrated single box crane hooks for lifting single modules
GATED SIDE BRACE FRAME
- Gives gated access at 4ft levels
- Braces across two end frames for greater rigidity
Z STAIRS
- Position easily over frame horizontals and bolt into position
- Also provides additional bracing
MIDDLE HANDRAIL FRAME
Inner handrail providing safe dual handrail support on both sides of user ascending & descending
STANDARD BRACE FRAME
All welded box section extrusions, with rails set at OSHA required dimensions
TOP MOUNTED CRANE LIFTING
Hooks allow for whole assembled towers to be lifted
GATED END FRAME
- Allows for additional versatility and alignment
- Allows bridges to be attached to connect to adjacent structure or to another tower
TOP INSIDE HANDRAIL
Connects to top most stair and lower inside handrail
BASE ELEMENT
Incorporates a typical scaffold base jack and holds it captive to prevent dislodgement when craning
SCAFFOLD CASTER
Can be attached to make the unit maneuverable
CANTILEVER PLATFORMS
Cantilever the Z-Stacklanding
BRIDGES
Effortlessly bridge from the Z-Stacklanding to the area needing to access
ADJUSTASTAIRS
For adjustable alignment to access point
U BOLT TIE OFF BRACKETS
- Allow for easy positioning and multiple anchoring options
- Recommend tie off every 1/3 box or when the Z-Stack exceeds OSHA 4:1 height to width ratio
DECKING
12 Plank deck which creates the horizontal cross back arrangement
