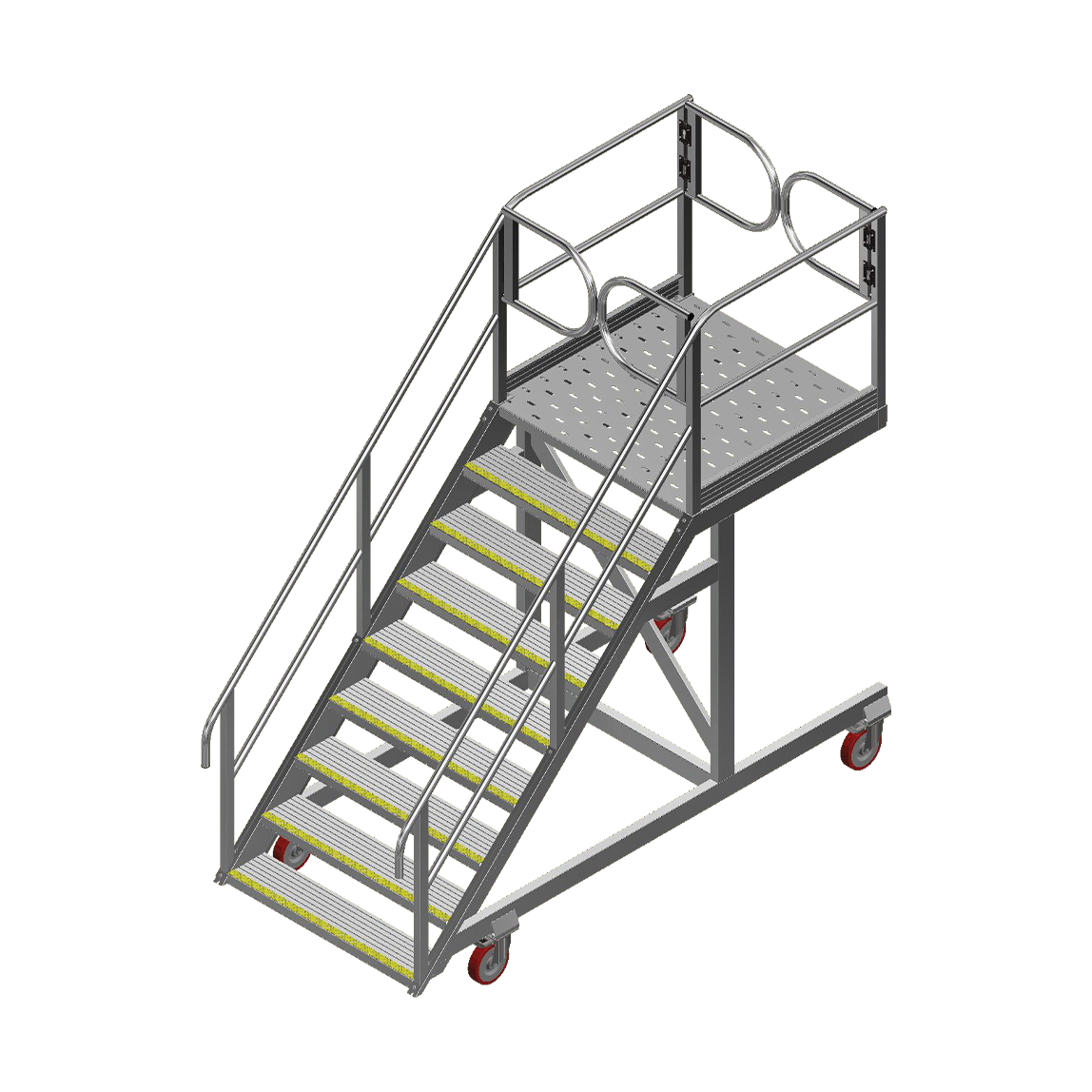

Dozer Engine Bay End-Cantilever Access Platform

Cantilevered Access for Mining Equipment Engine Bays

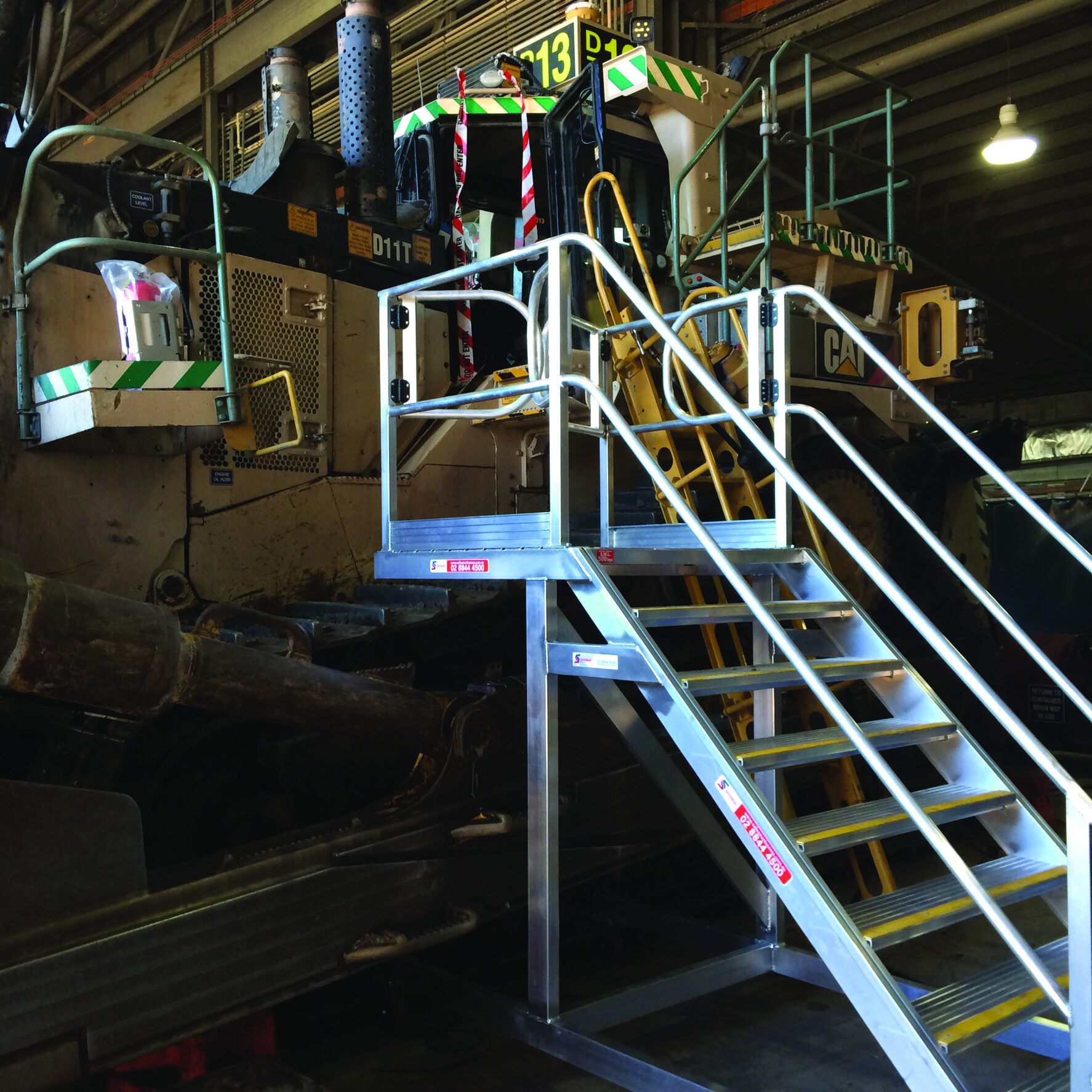

The Mining Engine Bay End-Cantilever Access Platform is a custom work platform designed to provide access around engine-bay work areas on tracked mining equipment. Its cantilevered deck supports access over the machine push arm and toward the track-side work zone.

The platform is built with a high-tensile aluminum box-section frame and can be custom configured around the machine and maintenance requirement. This allows the access arrangement to be developed around the equipment profile and the specific engine-bay service area.

45-degree stair access provides a direct route to the work deck for maintenance teams carrying tools and components. Optional fold-out edge-protection wings can be included for work areas alongside the machine tracks.

Key Features

• Custom end-cantilever platform for mining equipment engine-bay access
• Designed to provide access over the machine push arm
• Supports work around track-side engine-bay areas
• High-tensile aluminum box-section frame
• Custom configuration for different machine makes and models
• 45-degree stair entry to the elevated work deck
• Optional fold-out edge-protection wings for track-side work

Typical Applications

This custom mining equipment access platform is suited to applications including:

• Engine-bay maintenance on tracked mining equipment
• Access over push arms and adjacent machine structures
• Track-side maintenance work
• Inspection and service around engine-bay components
• Mining workshop and field-service access requirements
• Custom access configurations for specific machine profiles

Specifications

• Product type: Custom mining engine-bay end-cantilever access platform
• Primary application: Engine-bay and track-side maintenance access
• Platform configuration: End-cantilevered work deck
• Machine access: Access over the push arm toward the track area
• Construction: High-tensile aluminum box-section frame
• Access entry: 45-degree stair access
• Edge protection: Optional fold-out edge-protection wings
• Customization: Configurable for different machine makes and models
