Height-Adjustable Railcar Vehicle Access Platform Kit

Configurable Access for Rail Vehicles and Track-Mounted Equipment

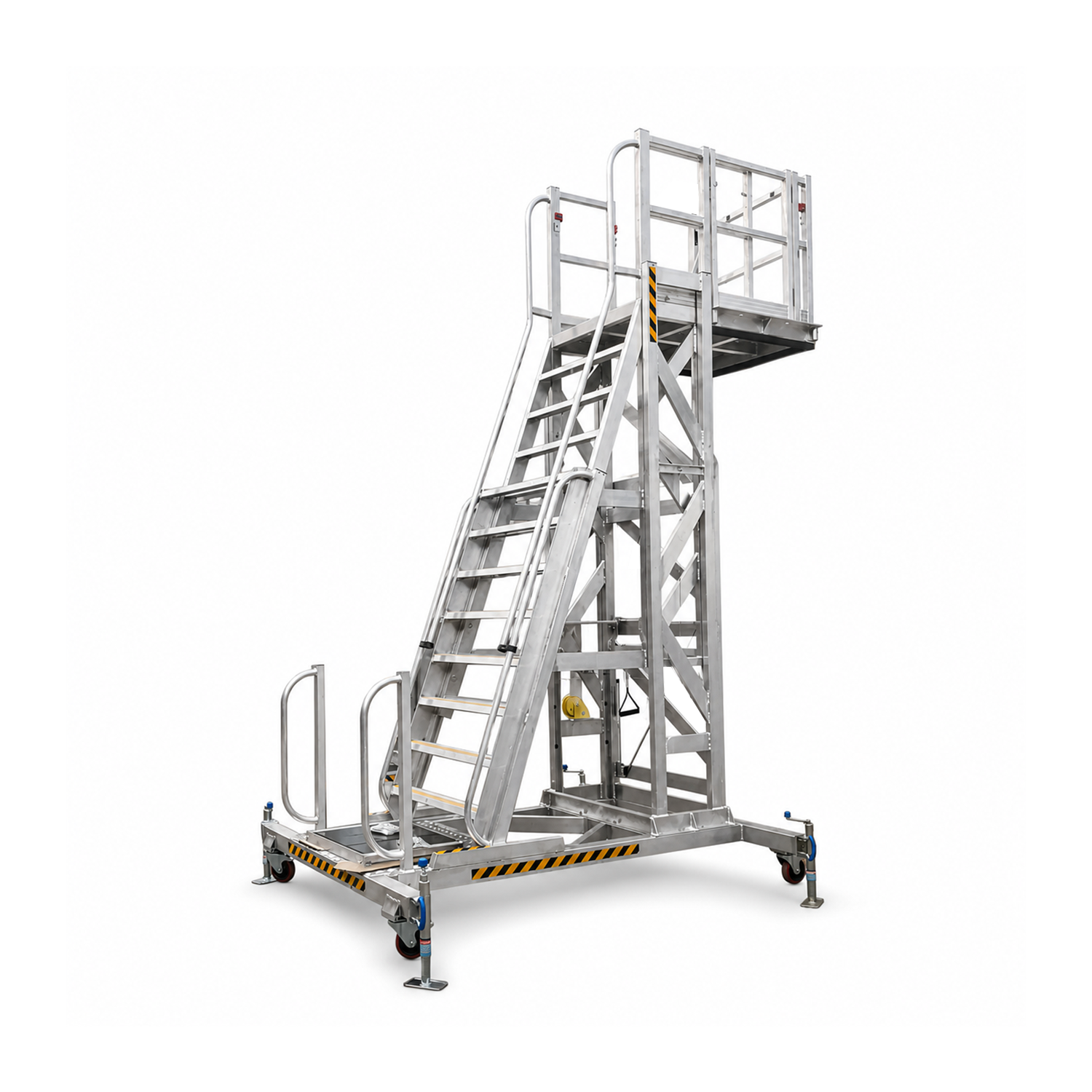

The SafeSmart Height-Adjustable Rail Vehicle Access Platform Kit is a configurable platform system designed for maintenance access around trains and track-mounted equipment. The kit combines two height-adjustable cantilever platforms with a joining bridge, creating a flexible arrangement that can be adapted to different vehicle profiles, service areas, and facility conditions.

Each base platform adjusts independently from 9 ft. 2 in. to 13 ft. 9 in. in height and includes a 2 ft. 6 in. cantilever reach. This allows crews to establish a working position at the required elevation while using one or both platforms, depending on the maintenance task.

The 6 ft. 6 in. joining bridge can connect to either the ends or sides of the base platforms. This gives the system multiple layout possibilities for access around different rail vehicles, track-mounted machines, and elevated service areas.

Key Features

• Configurable rail vehicle and track-mounted equipment access system
• Includes two height-adjustable cantilever platforms
• Includes one joining bridge
• Each base platform adjusts independently from 9 ft. 2 in. to 13 ft. 9 in.
• 2 ft. 6 in. cantilever reach on each base platform
• 6 ft. 6 in. joining bridge
• Bridge connects to the ends or sides of the base platforms
• Base platforms can be used independently within the adjustment range

Typical Applications

• Train maintenance and inspection access
• Rail vehicle service areas with varying working heights
• Track-mounted equipment maintenance
• Access around rail vehicle sides, roofs, and elevated components
• Rail maintenance facilities requiring a configurable platform layout
• Projects where a fixed access arrangement does not suit multiple vehicle types

Configuration Flexibility

The kit is designed to create more than one access arrangement from the same core platform components. The base platforms may be used individually, paired together with the joining bridge, or configured with the bridge at the ends or sides to suit the required equipment and work area.

• Independent use of either height-adjustable base platform
• Paired platform arrangement with joining bridge
• End-connected bridge configuration
• Side-connected bridge configuration
• Layout review for different rail vehicles and track-mounted machines

Specifications

• Product Type: Height-adjustable rail vehicle access platform kit
• SKU: HATAPK
• Base Platforms: Two height-adjustable cantilever platforms
• Joining Component: One connecting bridge
• Base Platform Height Range: 9 ft. 2 in. to 13 ft. 9 in.
• Cantilever Reach: 2 ft. 6 in.
• Joining Bridge Length: 6 ft. 6 in.
• Bridge Connection: End or side connection to the base platforms

Confirm the Required Platform Layout

Final platform layout should be reviewed against the rail vehicle or track-mounted equipment, required service locations, working heights, clearance conditions, and facility workflow. Contact SafeSmart to confirm the appropriate configuration.
