Z-Stack™ Modular Stair Tower System

Modular Stair Towers for Scalable Vertical Access

Z-Stack™ is SafeSmart’s modular stair tower system for creating repeatable vertical access on temporary jobsites and permanent industrial installations. Stackable aluminum modules can be configured into multi-level towers that provide a defined stair route between grade, floors, rooftops, excavation levels, decks, and elevated work areas.

Rather than relying on temporary ladders, improvised stairs, or repeated scaffold rework, Z-Stack™ uses engineered stair-tower modules that can be assembled, repositioned, extended vertically, or configured around the site requirements. The system can be supplied as separate modules for site assembly or craned into position as a fully assembled tower when the application allows.

Z-Stack™ is available in Standard and Compact module configurations. Standard modules provide a wider stair run and more room for crews, tools, and materials. Compact modules reduce the tower footprint for locations where space is limited, including permanent rooftop and industrial facility installations.

Standard and Compact Configurations

Select the module type around the available footprint, required stair width, work activity, and whether the system is intended for temporary or permanent access.

• Standard Modules: Typically used for construction and temporary access where a wider stair path and larger deck area support crew, tool, and material movement.
• Compact Modules: Typically used where footprint is limited, including permanent fixed access applications within industrial facilities and rooftops.
• Scalable Layouts: Both configurations can be stacked to create multi-level vertical access based on the required elevation and site layout.

Key Features

• Modular stair tower system for temporary or permanent vertical access
• Stackable modules for multi-level tower configurations
• High-strength aluminum construction
• Standard and Compact module options for different footprint requirements
• Standard modules with 36-inch stair treads
• Compact modules with 24-inch stair treads
• Designed for rapid assembly and repositioning by a two-or-more-person crew

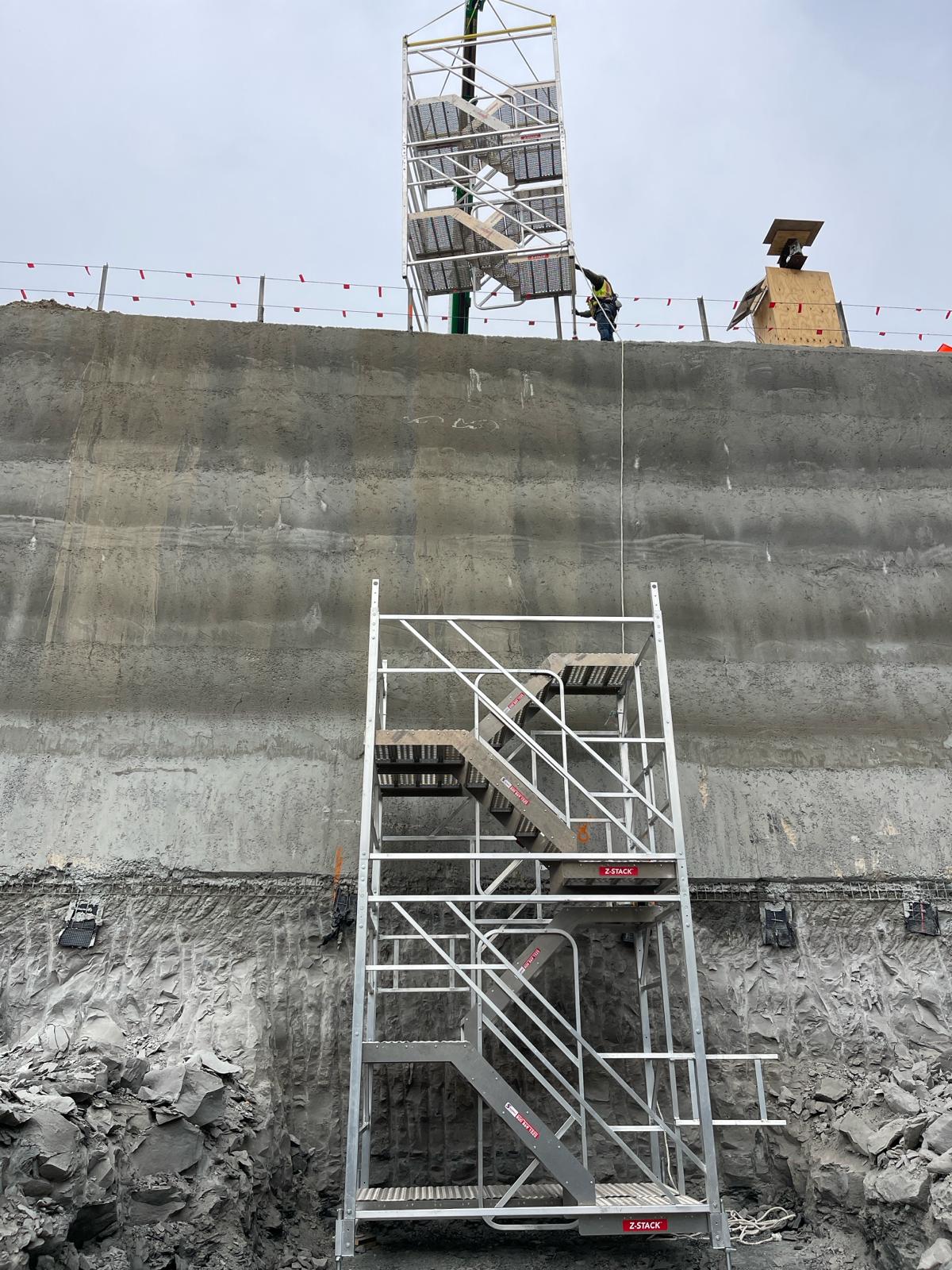

• Can be assembled on site or lifted into position as a complete tower when appropriate
• Rated for up to 1,100 lb. per module
• Available accessories and configurations for site-specific access requirements
• Manufactured in the USA

Typical Applications

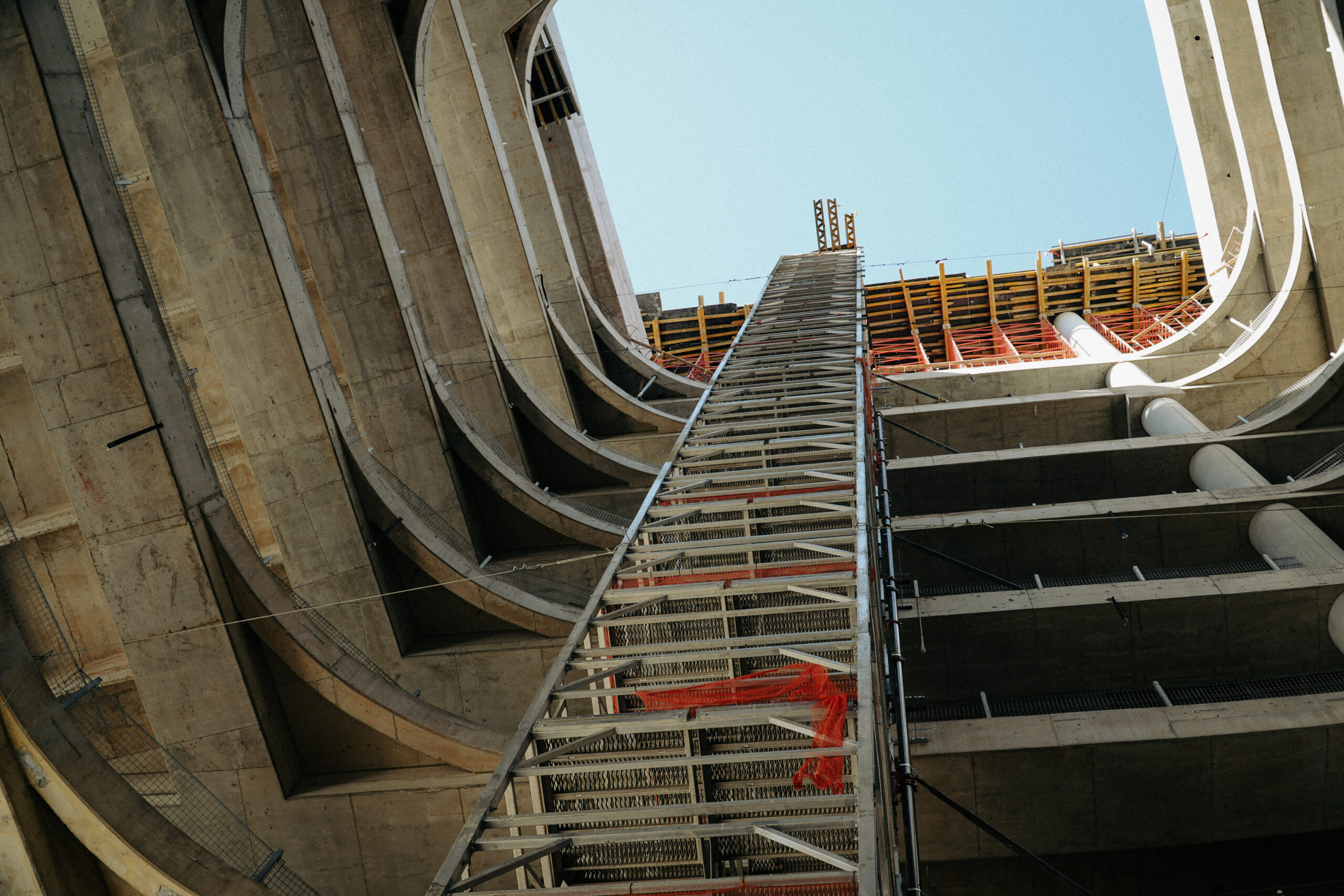

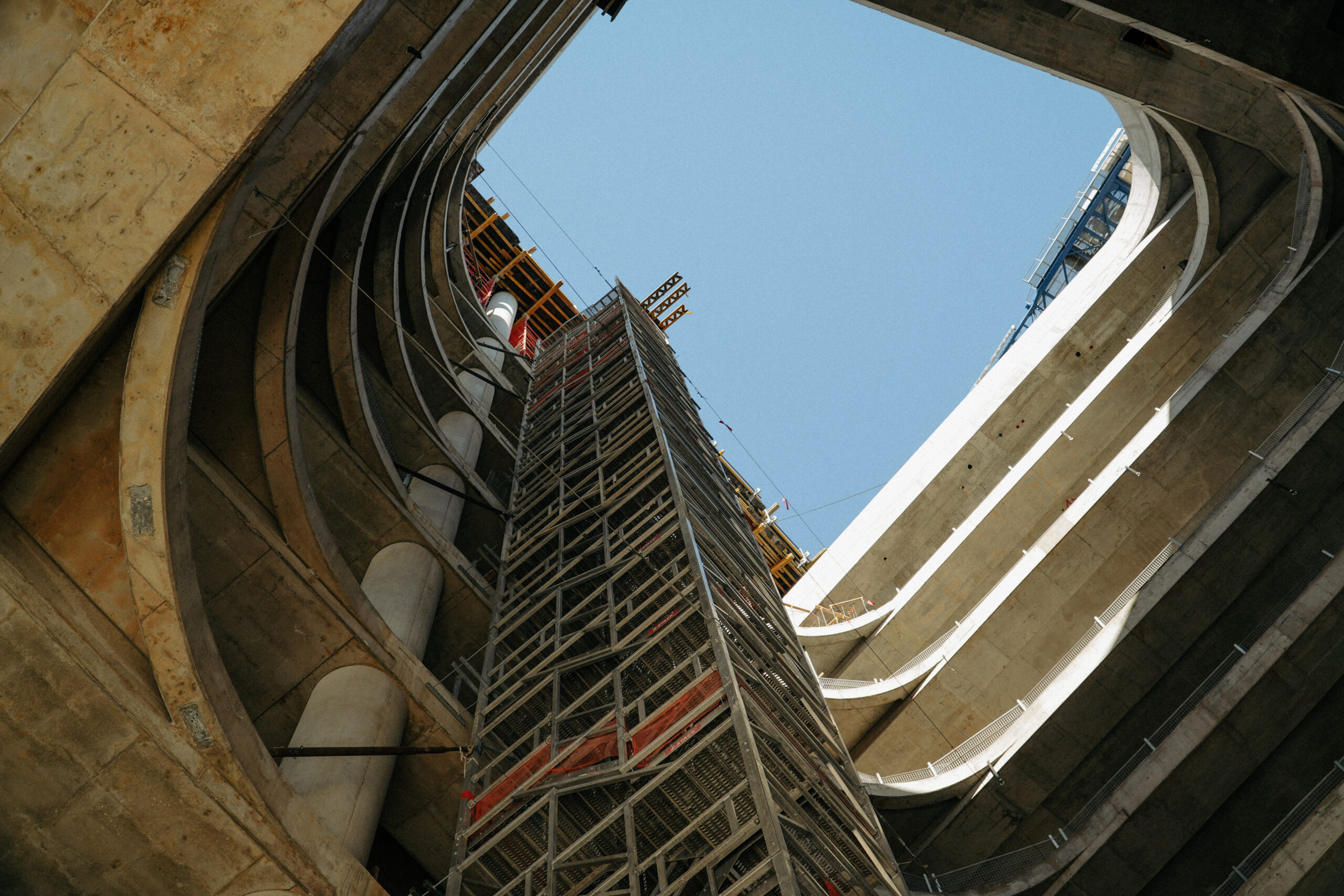

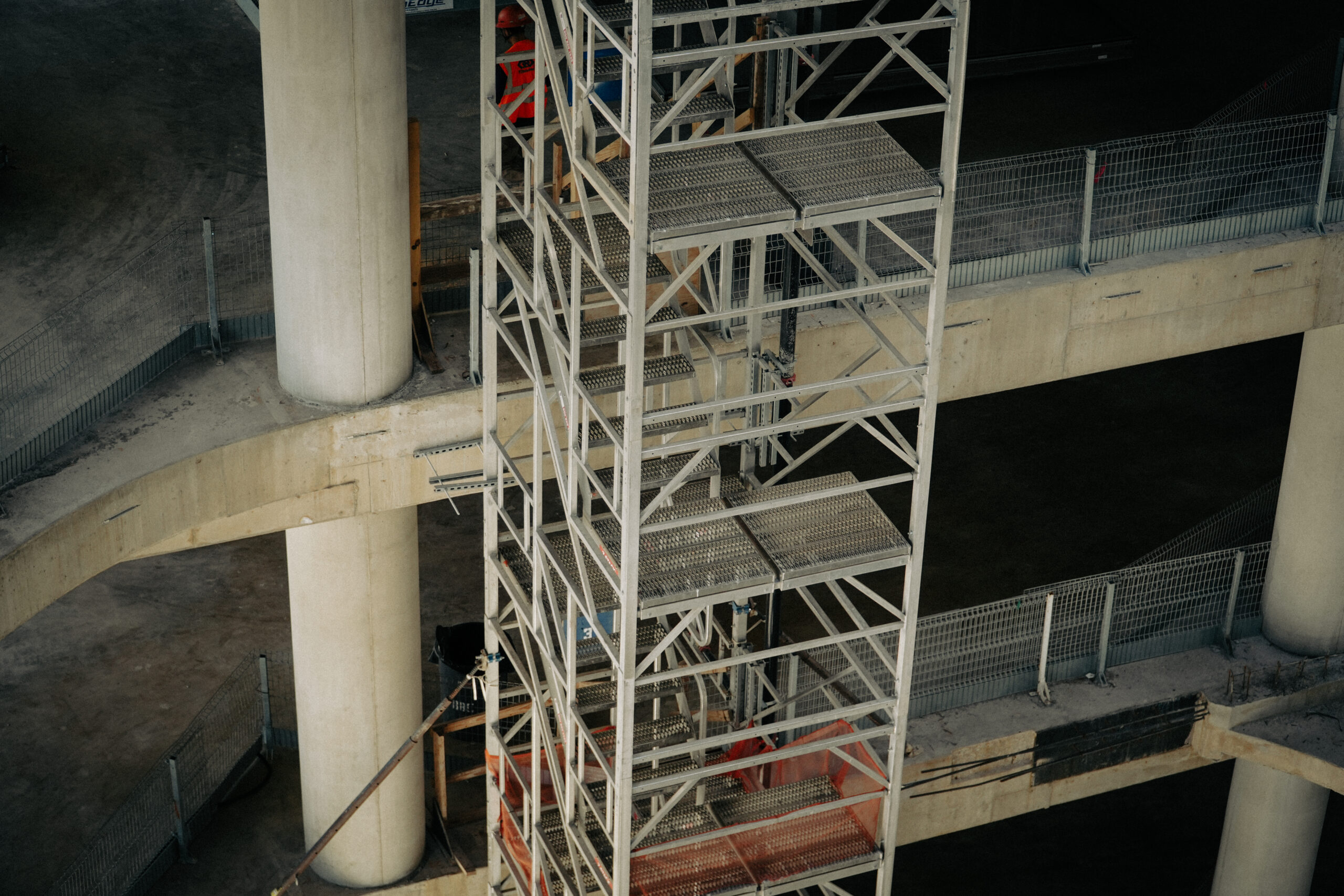

• Multi-level construction access
• Temporary access between floors during active builds

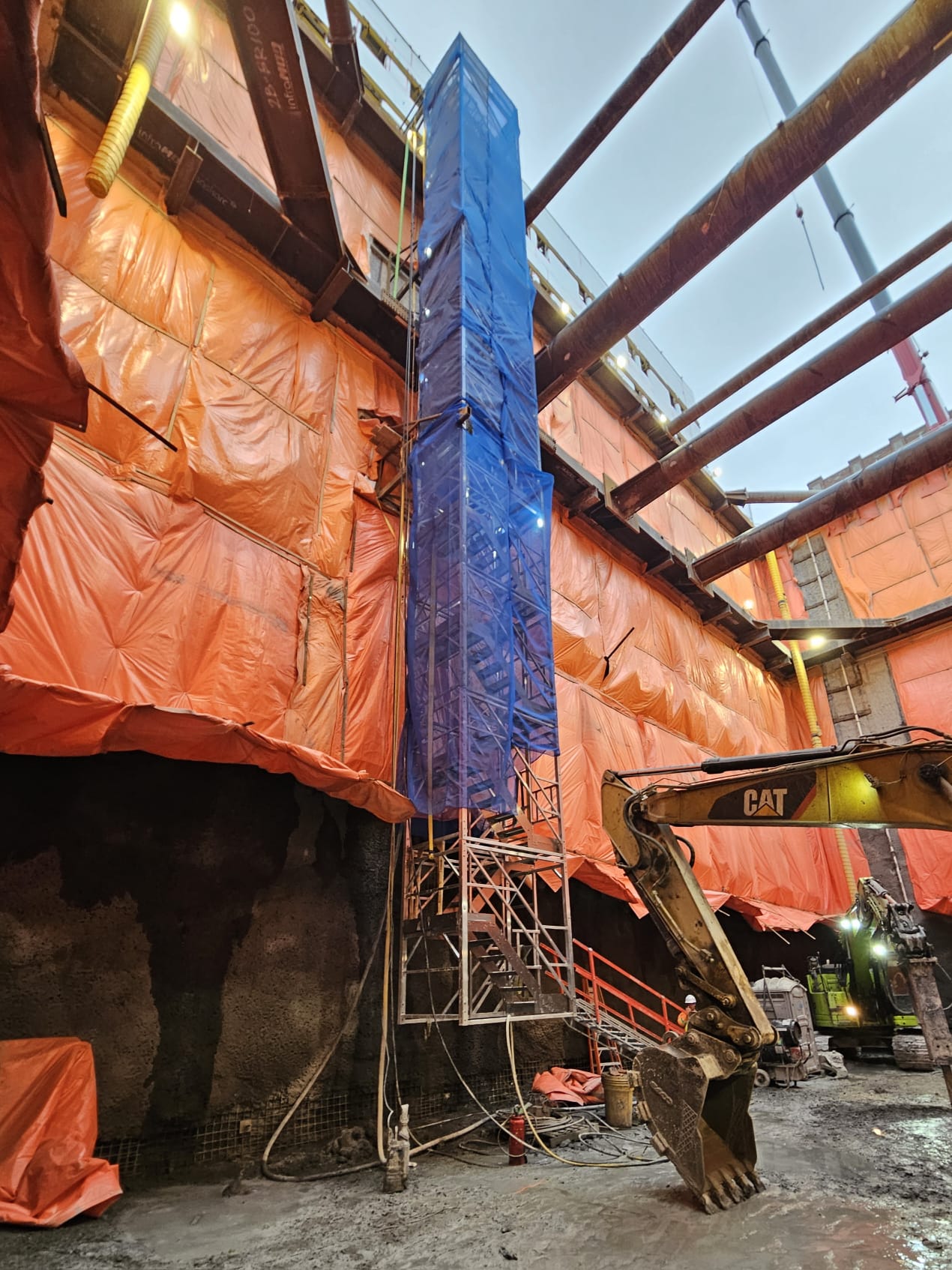

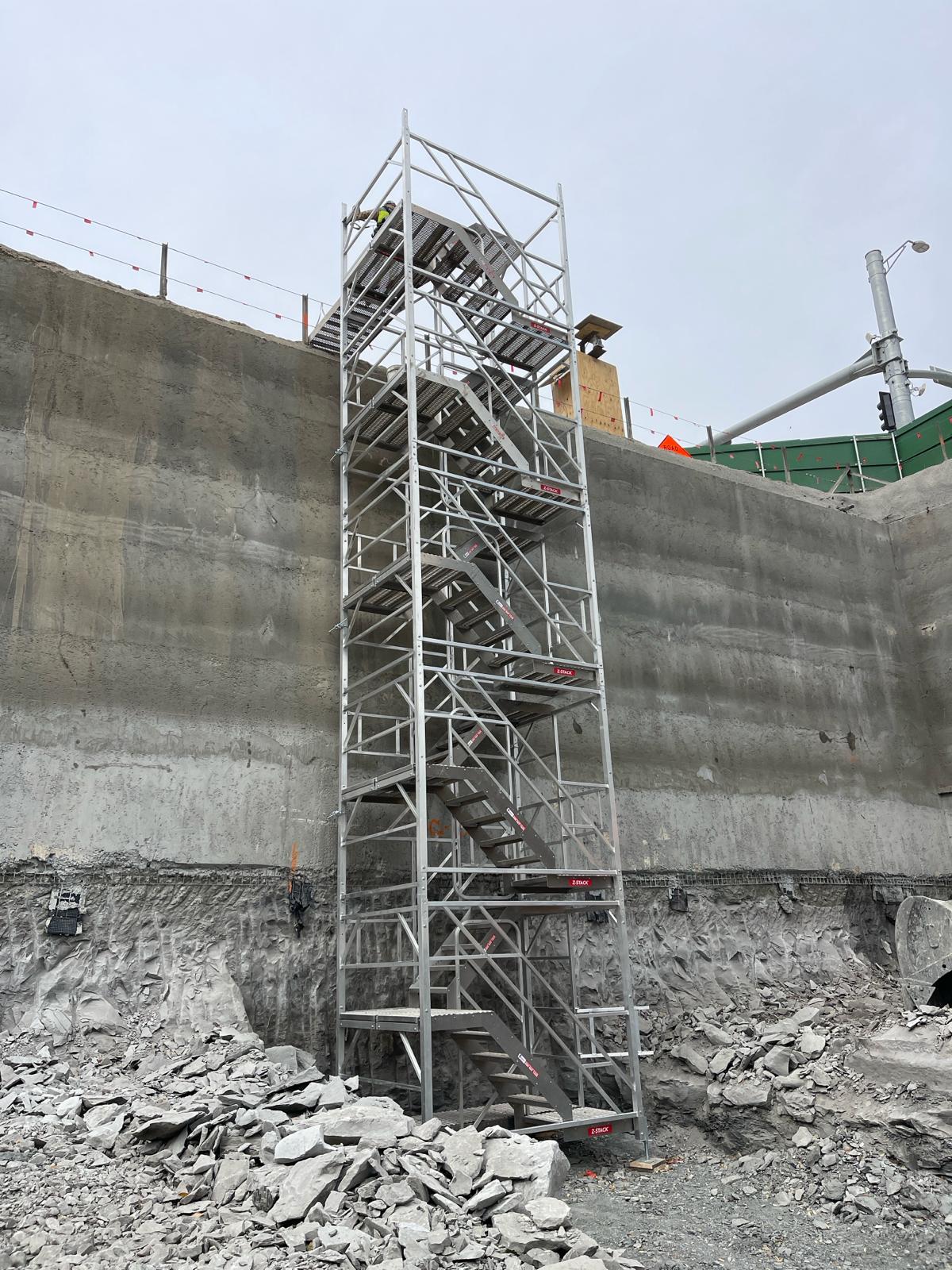

• Excavation and below-grade entry and exit

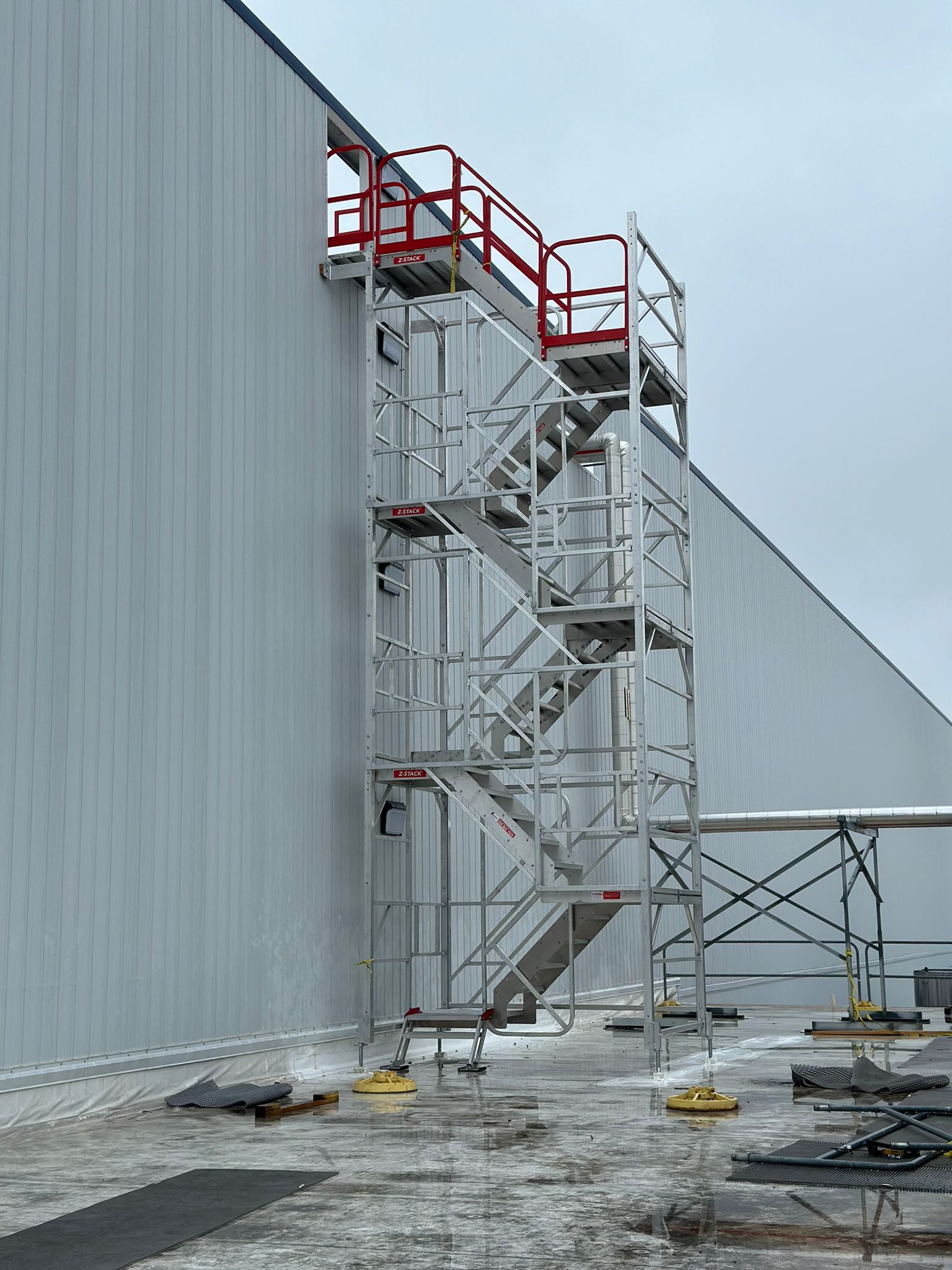

• Industrial rooftop access
• Permanent access between grade and elevated service areas

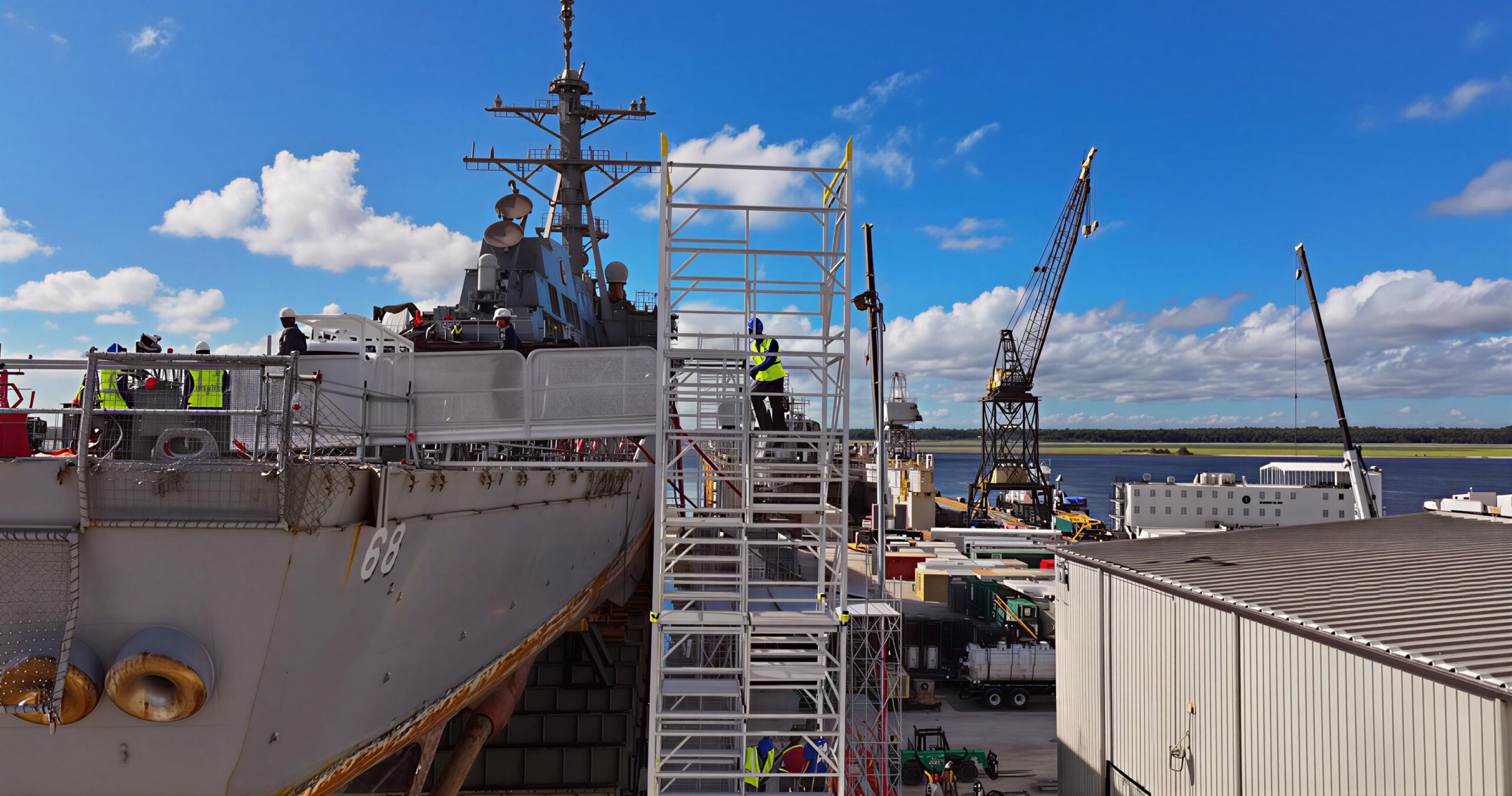

• Drydock and shipyard dock-to-deck access
• Access shafts and decline access applications
• Maintenance, infrastructure, energy, aviation, and industrial facilities

System Specifications

• Product Type: Modular stair tower system
• Material: High-strength aluminum
• Module Rating: Up to 1,100 lb. per module
• Standard Module Length: 9 ft. 4 in.
• Standard Module Width: 6 ft. 10 in.
• Standard Tread Width: 36 inches
• Compact Module Length: 7 ft. 7 in.
• Compact Module Width: 4 ft. 11 in.
• Compact Tread Width: 24 inches
• Deployment Options: Site assembly or crane placement of a fully assembled tower, where appropriate
• Use Type: Temporary or permanent vertical access
• Manufacturing: USA

Configure Your Z-Stack™

Each Z-Stack™ tower should be configured around the required vertical height, available footprint, entry and exit locations, access route, site conditions, intended use, and installation method. Contact SafeSmart to review your project and determine the appropriate Standard or Compact Z-Stack™ configuration.
