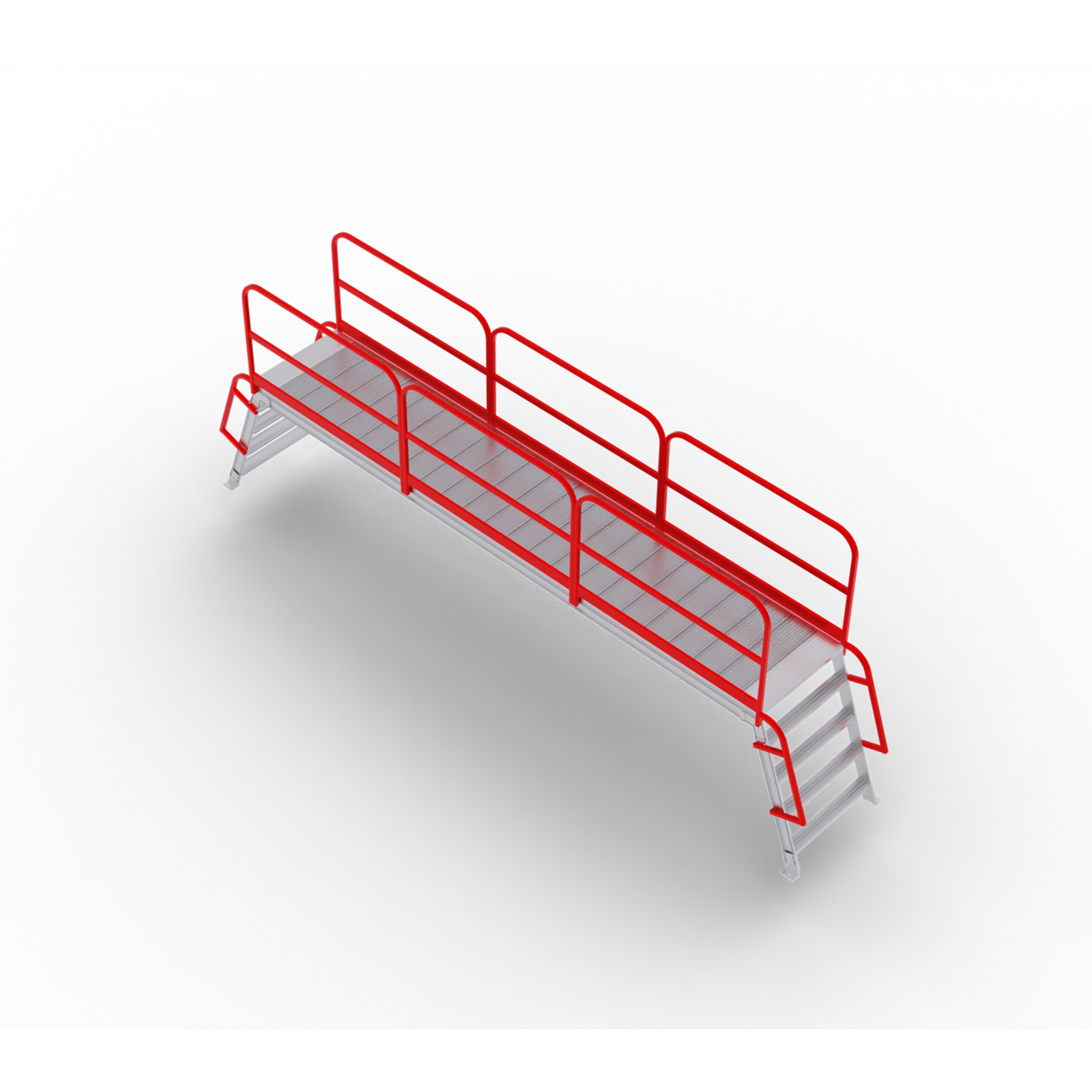

AdaptaStep™ 70° Ladder Crossover

Compact Crossover Access Where Space Is Limited

The AdaptaStep™ 70° Ladder Crossover creates a defined route over pipes, ducting, conduits, machinery, process lines, and other fixed obstructions that interrupt safe movement across rooftops and industrial facilities. Its compact 70° ladder-style access is suited to locations where a more gradual 45° stair crossover would require too much footprint.

Each crossover combines AdaptaStep 70° ladder modules with bridge planks to create a configuration around the required clearance height and crossing length. This allows teams to establish a purpose-built route over an obstruction instead of relying on site-built stepovers, loose ladders, or climbing across equipment.

Perforated plate decking supports traction while allowing dirt, grease, and debris to pass through the walking surface. Listed standard configurations include bolt-on handrails and feet, with multiple ladder heights and bridge-plank lengths available.

Why Choose a 70° Ladder Crossover?

The 70° crossover is the compact-footprint option within the AdaptaStep system. It provides a steeper access route than the 45° stair model while retaining the benefits of a modular, guarded crossover platform. This makes it a practical choice for tight industrial layouts, constrained rooftop areas, and equipment-dense environments.

• 70° ladder-style access for compact crossover layouts
• 12″ step-height geometry across the 70° ladder module
• Anti-slip treads for secure footing
• Modular step and bridge-plank combinations
• 36″ wide standard product configurations
• Perforated plate decking for traction and drainage
• Bolt-on handrails and feet included with listed standard configurations

Built on the AdaptaStep™ Modular System

AdaptaStep is built around SafeSmart’s patented T-slot extrusion framework. T-bolt hardware locks into integrated extrusion channels, allowing ladder modules, bridge planks, handrails, and support components to be assembled into a coordinated access route without site cutting or welding.

The system is designed to be more than a single crossover. The same component platform can be used to develop connected walkways, equipment platforms, catwalks, mezzanine connections, and larger rooftop navigation routes as access needs change.

• Patented T-Slot Framework: Integrated extrusion channels accept T-bolt hardware for repeatable component connections.
• Integrated Joiners: Purpose-built joiners secure 70° ladder modules and bridge sections to AdaptaStep platforms.
• Guardrail and Toeboard Options: Aluminum edge-protection components can be integrated around elevated access areas.
• Optional Non-Penetrating Support: AdaptaStep can be specified with non-penetrating feet for applicable roof and existing-surface installations.
• Reconfigurable Layouts: Modular components can support future changes to access routes, equipment, and facility layouts.

Typical Applications

• Rooftop crossover access over HVAC ducting, conduit, piping, and equipment
• Compact industrial access over machinery, conveyors, and service lines
• Maintenance routes in equipment-dense production and processing areas
• Access paths between roof zones, equipment pads, and work areas
• Facility upgrades that replace improvised stepovers and fixed site-built access
• Connected rooftop and industrial navigation systems built from AdaptaStep modules

Standard Configuration Range

• Access Angle: 70° ladder access
• Standard Product Width: 36″
• Ladder Configurations: 2 to 12 steps in the current standard product range
• Listed Vertical Clearance: 16″ to 136″, depending on selected ladder configuration
• Bridge-Plank Configurations: 3, 5, 7, 9, 11, 13, or 15 planks
• Listed Crossing Length: 21.5″ to 135.5″, depending on selected bridge-plank configuration
• Deck Surface: Perforated plate
• Included Components: Bolt-on handrails and feet with listed standard configurations

Plan the Right Compact Crossover

Selection should begin with the obstruction’s height, crossing length, available footprint, surrounding equipment, and expected frequency of use. For complex rooftops, dense industrial environments, or connected access routes, SafeSmart can help evaluate the access path and develop an AdaptaStep configuration aligned with the site’s operational and project requirements.

Final layout, support conditions, and applicable safety requirements should be reviewed for the specific installation before use.
