The Premium Post and Panel Edge Protection System
AdaptaPanel
The Premium Post and Panel Edge Protection System
AdaptaPanelSafeSmart Access in Sydney was approached by a client who needed a more semi-permanent edge protection during an excavation. We developed this system, now dubbed AdaptaPanel.

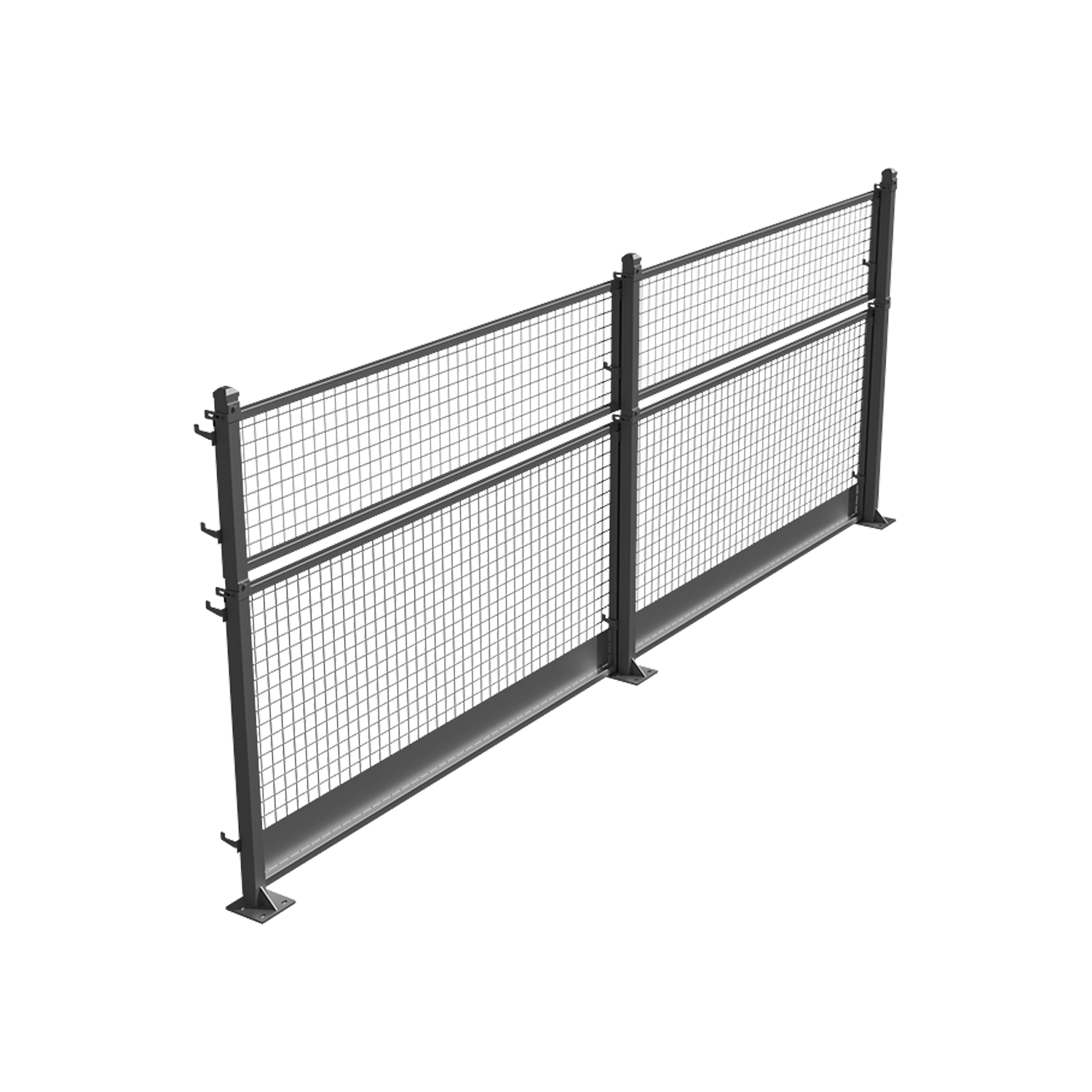

This system features a heavy-duty framed panel arrangement to withstand harsh site conditions, as well as slide-in panels for easy modular disassembly and redeployment at another site. The posts bolt to the slab edge, creating a stronger structure than traditional scaffolding-type edge protection.
Sliding safety latches prevent panels from accidentally lifting off, and the system is designed to comply to relevant design load requirements.
Full height and half height panels combine to make a 40″ to 10′ high panel. When looking for Australia’s leading post and panel edge protection system, look for AdaptaPanel.
- Optional coated finishes include galvanised and several powder coat colours for brand identification.
- Available in multiple post heights: 39″, 59″, 78″ & 118″.
- This system is designed to meet relevant design and load requirements of AS4994.1:2009 and AS1657 : 2018.
- Temporary and semi-permanent slab edge protection
- Heavy duty framed panel for longevity in harsh site conditions
- Posts bolt to slab edge, and slide-in panels are secured with a fixing bolt
- Sliding safety latches retain mesh panels, preventing unintentional lift-off
- The 59"H & 78"H panels are ideal for high rise construction and to assist with PEZ (Perimeter Exclusion Zone)
- Ideal for high rise construction, retaining walls, capping beams, and deep excavations.
- Panels may be stacked for easy storage and transportation
- Designed to meet relevant design and load requirements of AS4994.1:2009 Temporary edge protection standard and AS1657 : 2018
- AdaptaPanel Edge Protection Face Mount Post - 40"H
- AdaptaPanel Edge Protection Face Mount Post - 5'H
- AdaptaPanel Edge Protection Face Mount Post - 6'6"H
- AdaptaPanel Edge Protection Post - 40"H
- AdaptaPanel Edge Protection Post - 5'H
- AdaptaPanel Edge Protection Post - 6'6"H
- AdaptaPanel Edge Protection Post - 10'H
- AdaptaPanel Mesh Fence Panel - 20"H x 40"L
- AdaptaPanel Mesh Fence Panel - 20"H x 6'6"L
- AdaptaPanel Mesh Fence Panel - 40"H x 40"L
- AdaptaPanel Mesh Fence Panel - 40"H x 6'6"L
- AdaptaPanel Edge Protection Left-Hand Corner Post - 6'6"H
- AdaptaPanel Edge Protection Right-Hand Corner Post - 6'6"H
- AdaptaPanel Edge Protection - Cranked Post - 2.0mH
SafeSmart Access in Sydney was approached by a client who needed a more semi-permanent edge protection during an excavation. We developed this system, now dubbed AdaptaPanel.
This system features a heavy-duty framed panel arrangement to withstand harsh site conditions, as well as slide-in panels for easy modular disassembly and redeployment at another site. The posts bolt to the slab edge, creating a stronger structure than traditional scaffolding-type edge protection.
Sliding safety latches prevent panels from accidentally lifting off, and the system is designed to comply to relevant design load requirements.
Full height and half height panels combine to make a 40″ to 10′ high panel. When looking for Australia’s leading post and panel edge protection system, look for AdaptaPanel.
- Optional coated finishes include galvanised and several powder coat colours for brand identification.
- Available in multiple post heights: 39″, 59″, 78″ & 118″.
- This system is designed to meet relevant design and load requirements of AS4994.1:2009 and AS1657 : 2018.
