Non-Penetrating Roof Edge Protection for Active Work Areas

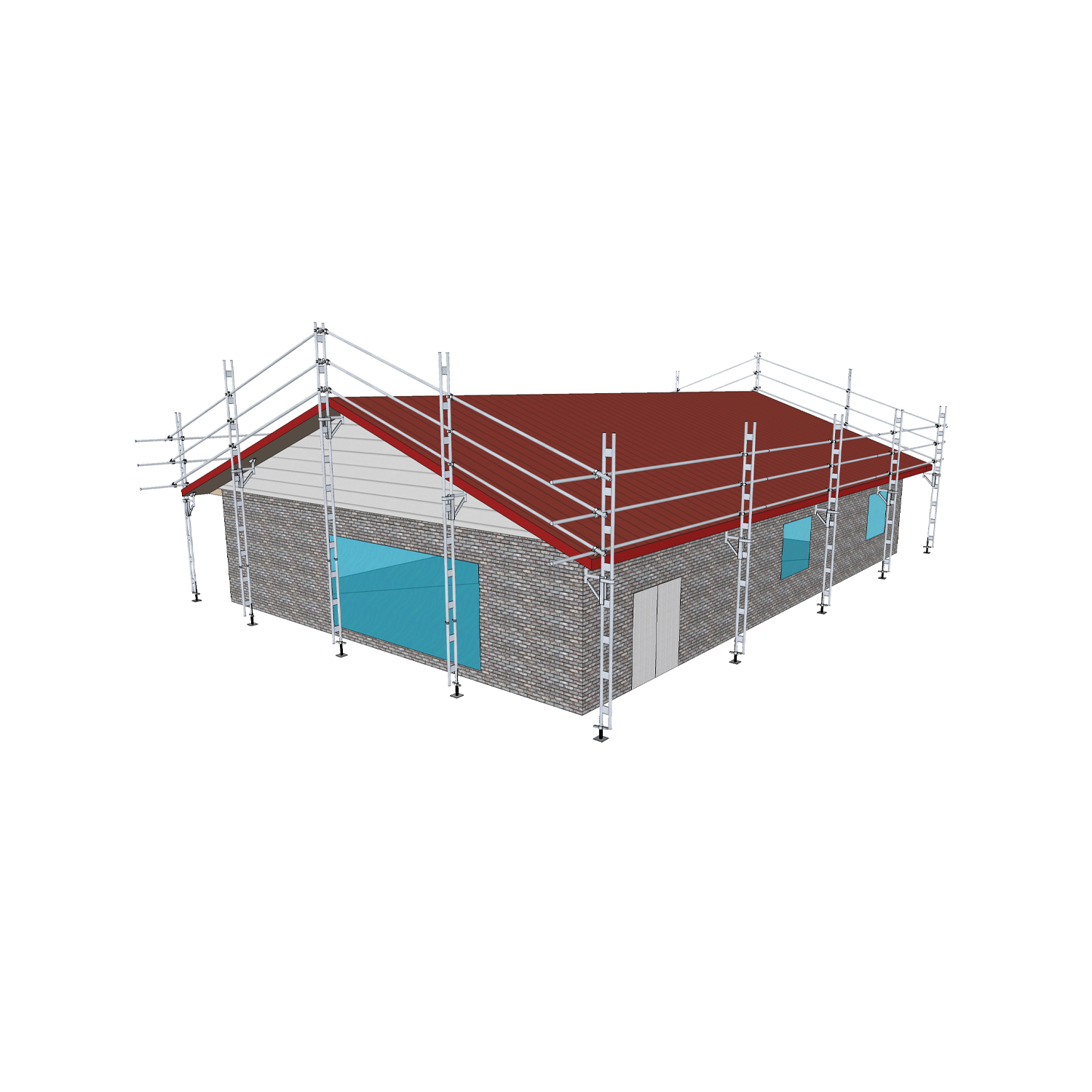

EasyRail is a modular roof edge protection system for roofing, restoration, asbestos-removal, and building-maintenance work. Designed to avoid fixing directly to the structure being worked on, it helps crews establish temporary perimeter protection without removing roof sheets or tiles or creating patching work after removal.

The system uses a cantilever bracket that slides up the post and tightens beneath the eaves. Aluminum tube rails connect with couplers to create base, mid, and top rail positions around the work area.

Built for Faster Temporary Installation

EasyRail is designed for efficient setup where temporary roof-edge protection is needed without permanent alterations to the building. Its modular components can be configured to suit the roofline, work zone, and required protection length.

Key Features

  • Non-penetrating installation designed to avoid direct fixing to the building
  • Cantilever bracket slides along the post and tightens beneath the eaves
  • Aluminum tube rails connect using couplers
  • Base, mid, and top rail positions can be assembled around the work area
  • Standard post options listed from 3’3″ to 19’8″ using joining spigots for taller configurations
  • Modular design supports temporary roof-edge protection layouts

Typical Applications

  • Roofing and reroofing projects
  • Roof restoration and repair work
  • Asbestos-removal projects
  • Low-rise building maintenance
  • Temporary roof-edge protection during exterior work

Configuration Considerations

EasyRail should be configured around the roof geometry, eave condition, work scope, and site-specific safety requirements. Contact SafeSmart to confirm the appropriate post height, rail layout, and bracket configuration for your application.

EasyRail is a modular roof edge protection system designed to install without fixing directly to the building. Its cantilever bracket secures beneath the eaves while aluminum tube rails and couplers create a practical temporary perimeter system without removing roof sheets or tiles.

SKU: 210227
EasyRail Component - 40" EasyRail post
  • 40" EasyRail Post
SKU: 210228
EasyRail Component - 6'6" EasyRail post
  • 6'6" EasyRail Post
SKU: 210229
EasyRail Component - 10' EasyRail post
  • 10' EasyRail Post
SKU: 210230
EasyRail Component - 13' EasyRail post
  • 13' EasyRail Post
SKU: 290703
EasyRail Component - 10'L scaffold tube
  • 10'L Scaffold Tube
SKU: 210239
EasyRail Component - 20' EasyRail post
  • 20' EasyRail Post
SKU: 210231
EasyRail Component - cantilever bracket
  • EasyRail Cantilever Bracket
SKU: 210237ER
EasyRail Component - fixed double coupler
Fixed Double Coupler
SKU: HS046
EasyRail Component - internal joiner
  • Internal Joiner
SKU: 210232ER
EasyRail Component - scaffold swivel coupler
Scaffold Swivel Coupler
SKU: 230233ER
EasyRail Component - screw jack
EasyRail Screw Jack

Product Description

Non-Penetrating Roof Edge Protection for Active Work Areas

EasyRail is a modular roof edge protection system for roofing, restoration, asbestos-removal, and building-maintenance work. Designed to avoid fixing directly to the structure being worked on, it helps crews establish temporary perimeter protection without removing roof sheets or tiles or creating patching work after removal.

The system uses a cantilever bracket that slides up the post and tightens beneath the eaves. Aluminum tube rails connect with couplers to create base, mid, and top rail positions around the work area.

Built for Faster Temporary Installation

EasyRail is designed for efficient setup where temporary roof-edge protection is needed without permanent alterations to the building. Its modular components can be configured to suit the roofline, work zone, and required protection length.

Key Features

  • Non-penetrating installation designed to avoid direct fixing to the building
  • Cantilever bracket slides along the post and tightens beneath the eaves
  • Aluminum tube rails connect using couplers
  • Base, mid, and top rail positions can be assembled around the work area
  • Standard post options listed from 3’3″ to 19’8″ using joining spigots for taller configurations
  • Modular design supports temporary roof-edge protection layouts

Typical Applications

  • Roofing and reroofing projects
  • Roof restoration and repair work
  • Asbestos-removal projects
  • Low-rise building maintenance
  • Temporary roof-edge protection during exterior work

Configuration Considerations

EasyRail should be configured around the roof geometry, eave condition, work scope, and site-specific safety requirements. Contact SafeSmart to confirm the appropriate post height, rail layout, and bracket configuration for your application.
