Height-Adjustable Cantilever Platform with Loop Guardrails

Specialized Access for Elevated Beams and Structures

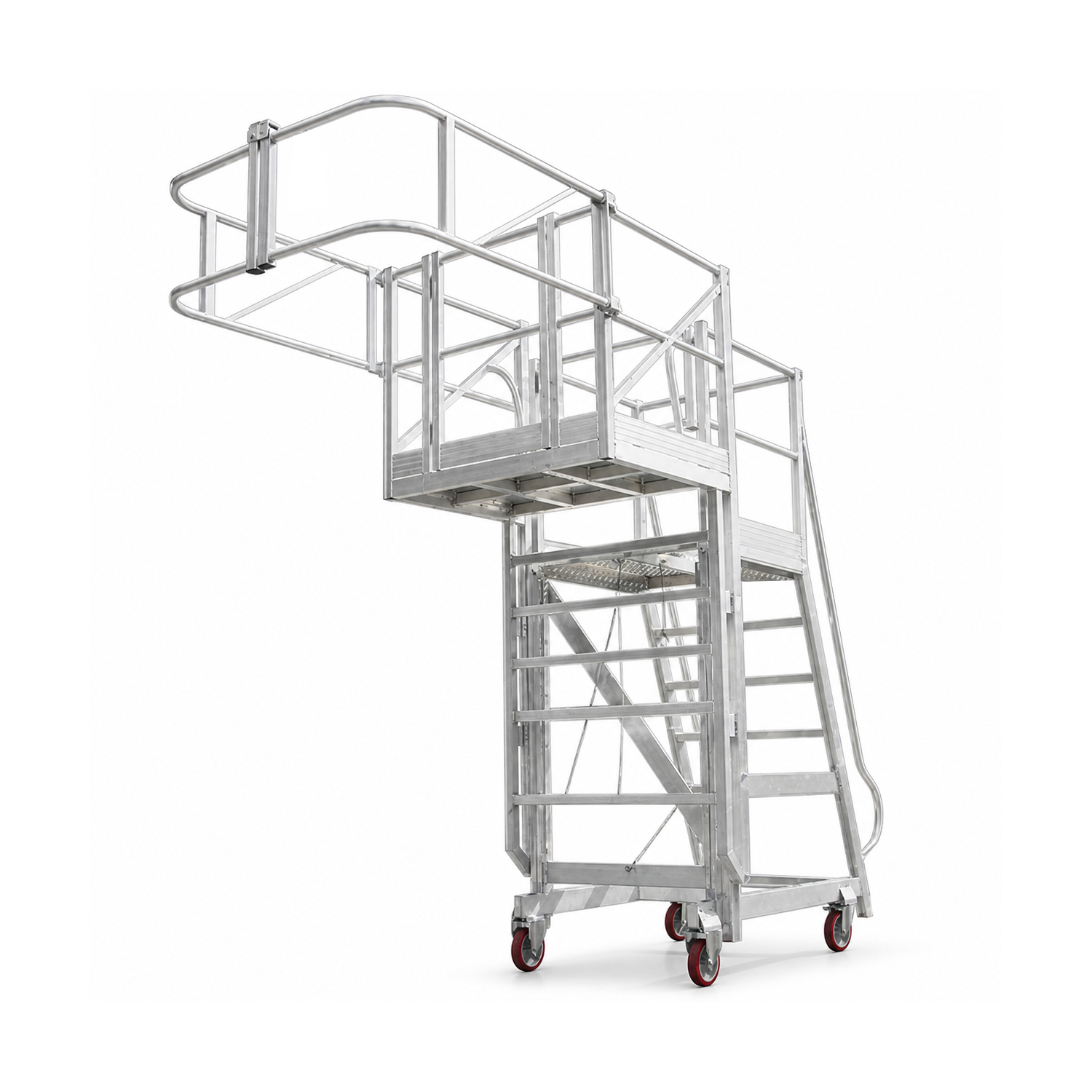

The Height-Adjustable Cantilever Platform with Loop Guardrails is a custom access platform based on SafeSmart’s cantilever platform design. It is configured for work areas where personnel need to establish a close working position alongside an elevated beam, structure, or equipment interface.

Unlike a platform that raises as one complete unit, this design allows the cantilever section itself to be raised up to 40 inches. This gives the operator flexibility to align the cantilever work area with the required access point while retaining the base platform arrangement.

Controlled Step-Through Access

A step-through gate at the cantilever section allows the operator to move from the platform into an area enclosed by the loop guardrail system. The loop guardrails surround the lifting-lug area, creating a defined access zone when the platform is positioned for the task.

Once the lifting equipment is connected, the operator can return to the cantilever platform and fold the loop guardrails back alongside the cantilever section, allowing the platform to be removed from the beam or structure.

Key Features

• Custom platform based on SafeSmart’s cantilever platform design
• Cantilever section height adjustment of up to 40 inches
• Step-through gate at the cantilever access point
• Loop guardrail system around the lifting-lug area
• Fold-back loop guardrails for platform removal
• Lifting lugs integrated within the guarded access area
• Designed for specialized elevated beam and structure access
• Custom configuration for the specific work area and access sequence

Typical Applications

• Elevated beam access
• Crane beam and lifting-point access
• Industrial structure inspection
• Maintenance work around elevated equipment
• Service access where a cantilevered work position is required
• Custom facility maintenance applications

Specifications

• Platform type: Custom height-adjustable cantilever platform
• Height adjustment: Cantilever section adjusts up to 40 inches
• Entry: Step-through gate at the cantilever section
• Guardrail system: Fold-back loop guardrails
• Lifting interface: Lifting lugs within the loop guardrail area
• Configuration: Custom to the beam, structure, and access workflow

SafeSmart should review the beam or structure geometry, required working height, lifting arrangement, clearance constraints, and operating sequence to confirm the appropriate platform configuration.
