Reefer Unit Access Platform

Access for Front-Mounted Reefer Units

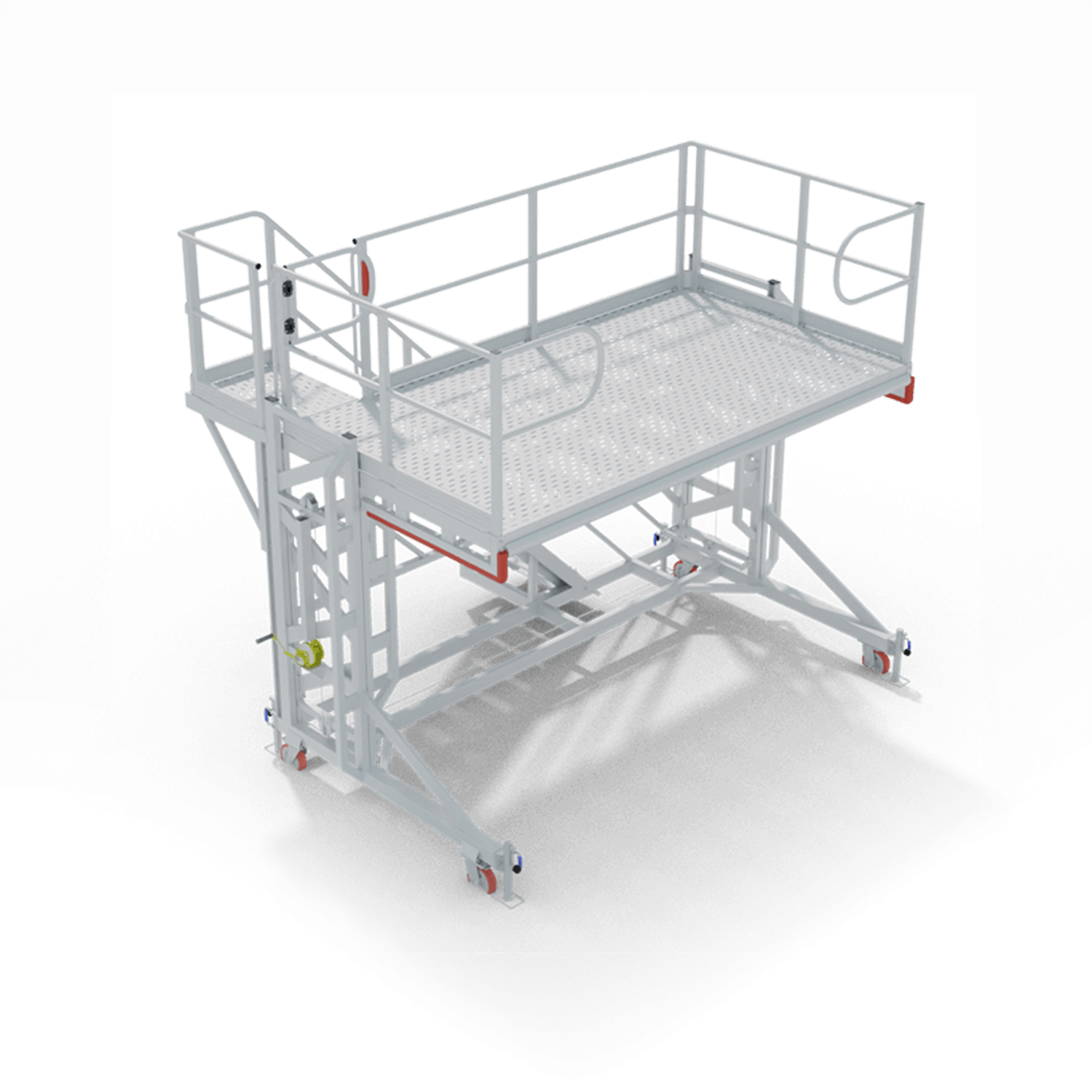

The SafeSmart Reefer Unit Access Platform is a mobile cantilever platform designed for service access to front-mounted truck refrigeration units. Often called reefer units or transport refrigeration units (TRUs), these systems are commonly installed at the front of an insulated truck body, above or immediately behind the cab.

The platform is hand-winch adjustable through a 48-inch range, from 7 ft. 6 in. to 11 ft. 6 in. high. Its cantilevered layout extends the working deck over the truck body, providing close access to the reefer unit without placing the main platform structure directly against the vehicle.

The featured custom configuration measures 11 ft. 6 in. high, 6 ft. 2 in. wide, and 11 ft. 10 in. long. It was developed around the truck dimensions and workshop layout, including a footprint intended to avoid protruding into adjacent service bays.

Key Features

• Mobile cantilever platform for reefer-unit access
• Designed for front-mounted truck refrigeration units above the cab
• Hand-winch height adjustment
• 48-inch height-adjustment range
• Adjustable working height from 7 ft. 6 in. to 11 ft. 6 in.
• Cantilevered deck arrangement for close access over the truck body
• Custom footprint developed around truck dimensions and workshop clearance
• Designed to minimize interference with adjacent service bays

Typical Applications

• Reefer-unit inspection and maintenance
• Service access to front-mounted truck refrigeration units
• Cooling-unit component inspection and repair
• Refrigerated box-truck fleet maintenance
• Cold-chain and temperature-controlled transport fleet operations
• Workshop access around cab-over truck equipment

Custom Configuration

SafeSmart can configure the platform around the truck-body height, reefer-unit location, required service access, and workshop layout. This allows the system to match the vehicle fleet and maintenance-bay conditions rather than relying on a generic platform arrangement.

• Custom platform dimensions for the truck body and work area
• Height-adjustment range to suit the reefer-unit location
• Cantilever configuration for the required reach over the truck body
• Footprint review for service-bay clearance and adjacent vehicles
• Configuration for multiple compatible truck types within a fleet

Specifications

• Product Type: Height-adjustable reefer unit access platform
• Primary Application: Access to front-mounted truck refrigeration units
• Height Adjustment: Manual hand winch
• Height Range: 7 ft. 6 in. to 11 ft. 6 in.
• Adjustment Travel: 48 inches
• Featured Overall Height: 11 ft. 6 in.
• Featured Width: 6 ft. 2 in.
• Featured Length: 11 ft. 10 in.
• Access Layout: Cantilevered over the truck body
• Configuration: Custom to truck geometry and workshop conditions

Confirm the Required Platform Configuration

Final platform dimensions, cantilever reach, working height, truck fitment, and workshop clearances should be reviewed for the intended reefer-unit service application. Contact SafeSmart to confirm the appropriate configuration.
