Curved-Wall Tunnel Ladders

Custom Access for Tunnel Service Work

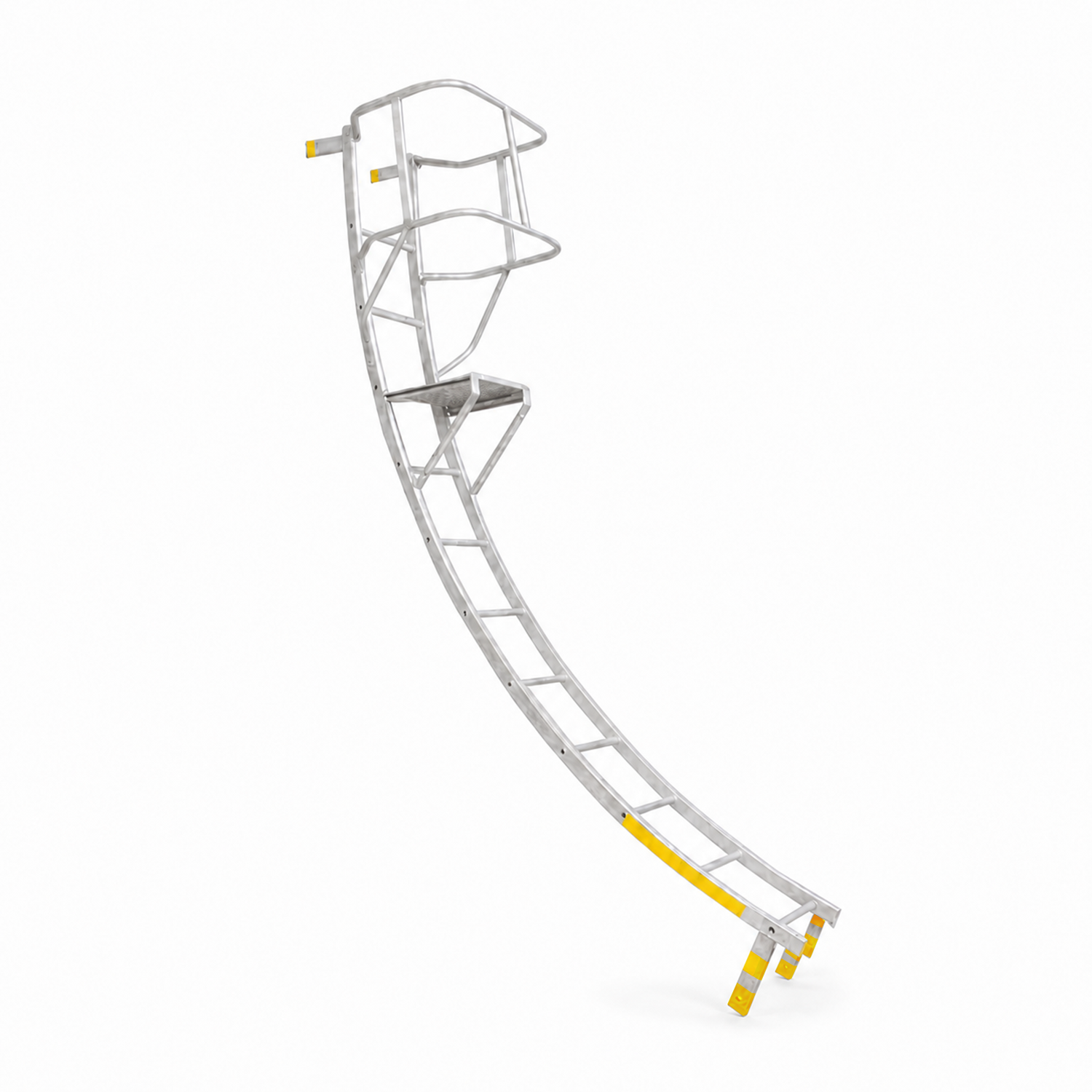

The SafeSmart Tunnel Service Access Ladder System is designed for access, installation, inspection, and maintenance work within road and rail tunnels. Unlike standard straight ladders, this custom system can be shaped around curved tunnel walls, installed services, and restricted work areas.

Each configuration is developed around the tunnel environment and intended work activity. Locating pins can engage with designated tunnel mounting points, while hook-supported configurations can locate over service pipes or other approved structural features. This gives crews a practical access solution that can be placed, relocated, and reused as work progresses through the tunnel.

Key Features

• Custom-designed for curved tunnel walls and constrained work areas
• Suitable for road tunnel and rail tunnel service work
• Locating-pin configurations for designated tunnel mounting points
• Hook-supported options for positioning over approved service pipes
• Portable design for relocation between tunnel work zones
• Purpose-built geometry for installation, inspection, and maintenance access
• Designed and fabricated by SafeSmart’s in-house team

Typical Applications

• Tunnel electrical and communications service installation
• Road tunnel maintenance access
• Rail tunnel inspection and service work
• Access around curved tunnel linings
• Mechanical, utility, and infrastructure installation work
• Repeatable access between progressing tunnel work areas

Specifications

• Product Type: Custom tunnel access ladder system
• Configuration: Designed around the tunnel geometry and access requirement
• Positioning Options: Locating pins or hook-supported configurations
• Use Environment: Road and rail tunnels
• Design Service: SafeSmart custom drafting and fabrication

Final ladder geometry, support method, clearances, and intended use should be reviewed against the specific tunnel structure and site requirements before manufacture.
